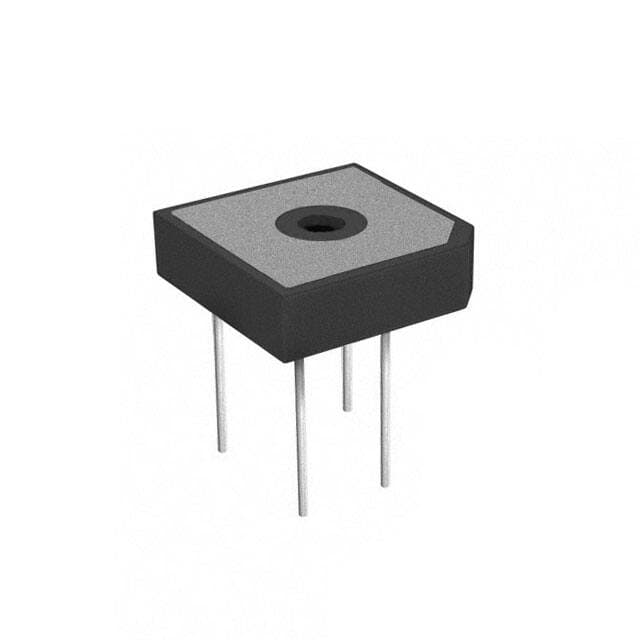

ONSEMI DBA250G
ONSEMI DBA250G

ONSEMI DBA250G

Manufacturer No:

DBA250G

Manufacturer:

ONSEMI

Package:

4-Square, GBPC-W

Description:

Single Phase Bridge Rectifier Standard Through Hole 150°C TJ 10?A @ 600V 1.05V @ 12.5A 4-Termination 1-Phase 4-Square, GBPC-W Tray

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DBA250G information

ONSEMI DBA250G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI DBA250G.

  • Type
  • Parameter
  • Mount
  • Screw, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 4-Square, GBPC-W
  • Number of Pins
  • 4
  • Diode Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Tray
  • Published
  • 2009
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • Terminal Finish
  • Silver (Ag)
  • Additional Feature
  • HIGH RELIABILITY
  • Technology
  • Standard
  • Terminal Position
  • UPPER
  • Terminal Form
  • SOLDER LUG
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Diode Type
  • Single Phase
  • Voltage - Forward (Vf) (Max) @ If
  • 1.05V @ 12.5A
  • Case Connection
  • ISOLATED
  • Output Current-Max
  • 6A
  • Current - Average Rectified (Io)
  • 6A
  • Forward Voltage
  • 1.05V
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 10?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 600V
  • Peak Non-Repetitive Surge Current
  • 400A
  • Max Forward Surge Current (Ifsm)
  • 400A
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ONSEMI DBA250G.

Datasheets:

ReachStatement:

DBA250G Overview


Basically, it is a 4-Square, GBPC-W package-type electronic component.There is no mounting method for the device.At 150°C TJ, it operates normally.In terms of output voltage, 6A is the maximum voltage that can be supported.For powering this device, there is a peak reverse voltage of 10?A.

DBA250G Features


4-Square, GBPC-W package
operating at a temperature of 150°C TJ
the maximum output voltage of 6A
peak reverse voltage of 10?A
a reverse voltage peak of 10?A


DBA250G Applications


There are a lot of ON Semiconductor
DBA250G applications of bridge rectifiers.


  • Electrically isolated aluminum case
  • Motor controls ? Low Voltage and Medium Voltage converters
  • SCR power bridges for solid state starters
  • SCR and diode based input rectifiers
  • Crowbar systems for motor drives
  • Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
  • Transportation ? Traction rectifiers and auxiliary rectifiers
  • Inductive heating ? Input rectifiers
  • Welding systems ? Input rectifiers and fast recovery diodes
  • Uninterruptible power supplies ? SCR transfer switches and input rectifiers
