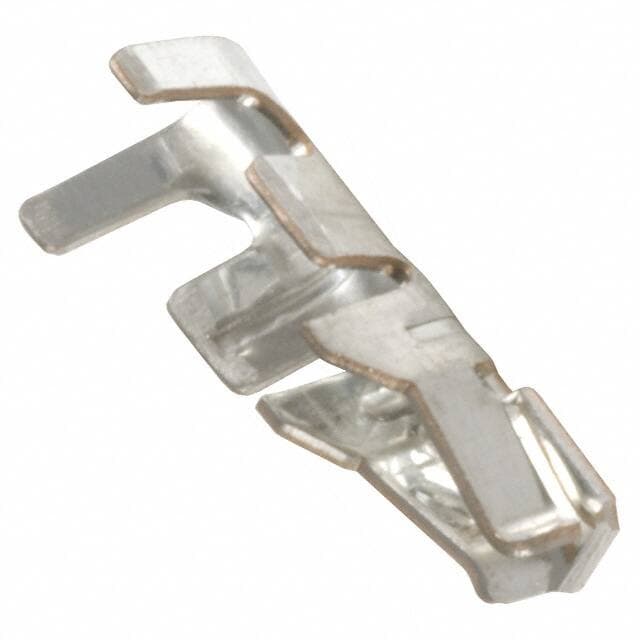

HIROSE DF11-22SC
HIROSE DF11-22SC

HIROSE DF11-22SC

Manufacturer No:

DF11-22SC

Manufacturer:

HIROSE

Package:

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF11-22SC information

HIROSE DF11-22SC technical specifications, attributes, parameters and parts with similar specifications to HIROSE DF11-22SC.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Copper
  • Mounting Style
  • STRAIGHT
  • Packaging
  • Bulk
  • Series
  • DF11
  • Published
  • 2006
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Connector Type
  • Connector, PCB, Signal
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -30°C
  • Voltage - Rated
  • 250V
  • HTS Code
  • 8536.90.40.00
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Current Rating
  • 2A
  • Contact Finish
  • Tin
  • Approval Agency
  • UL
  • Contact Gender
  • Female
  • Contact Style
  • BELLOWED TYPE
  • Contact Resistance
  • 30mOhm
  • Wire Gauge
  • 22 AWG
  • Connector Support Type
  • CONNECTOR ACCESSORY
  • Cable Type
  • UL1061, UL1007
  • Wire/Cable Gauge
  • 22 AWG
  • Contact Termination
  • Crimp
  • Pin or Socket
  • Socket
  • Assembly Item Name
  • CONTACT
  • Cable Entry-Max
  • 0.057 inch
  • Cable Entry-Min
  • 0.047 inch
  • Length - Termination
  • 0.106 inch
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for HIROSE DF11-22SC.

Datasheets:

Description: The Hirose DF11-22SC is a 22 AWG crimp socket connector with tin plating. It is a rectangular connector with a 2.5mm pitch and a 2.54mm mating height. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics.

Features:
- 2.5mm pitch and 2.54mm mating height
- 22 AWG crimp socket connector
- Tin plating
- RoHS compliant
- High temperature range of -40°C to +105°C
- Low contact resistance
- High durability

Applications: The Hirose DF11-22SC is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It is suitable for use in applications such as power supplies, motor control, and signal transmission. It is also suitable for use in harsh environments, such as high temperature and vibration.
