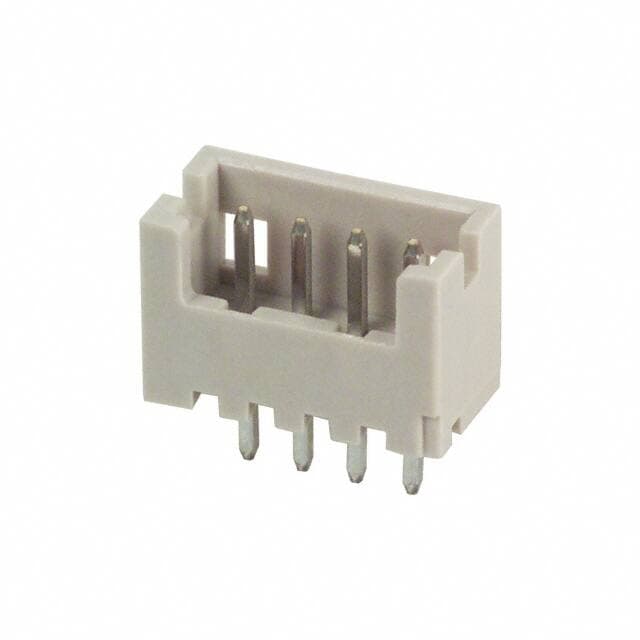

HIROSE DF13-4P-1.25DSA
HIROSE DF13-4P-1.25DSA

HIROSE DF13-4P-1.25DSA

Manufacturer No:

DF13-4P-1.25DSA

Manufacturer:

HIROSE

Package:

Description:

DF13 Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.169 4.30mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF13-4P-1.25DSA information

HIROSE DF13-4P-1.25DSA technical specifications, attributes, parameters and parts with similar specifications to HIROSE DF13-4P-1.25DSA.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA), Nylon
  • Housing Material
  • Polyamide
  • Operating Temperature
  • -35°C~85°C
  • Packaging
  • Bulk
  • Series
  • DF13
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 4
  • Number of Rows
  • 1
  • Voltage - Rated
  • 150V
  • Additional Feature
  • LOW PROFILE
  • Fastening Type
  • Detent Lock
  • Contact Finish - Mating
  • Tin
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Insulation Height
  • 0.169 4.30mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.049 1.25mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.091 2.30mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 1
  • Lead Pitch
  • 1.25mm
  • PCB Contact Pattern
  • RECTANGULAR
  • Contact Gender
  • Male
  • Housing Color
  • Beige
  • Contact Resistance
  • 30mOhm
  • Insulation Resistance
  • 500000000Ohm
  • Durability
  • 50 Cycles
  • Height
  • 4.6mm
  • Length
  • 6.65mm

Download datasheets and manufacturer documentation for HIROSE DF13-4P-1.25DSA.

Datasheets:

DF13-4P-1.25DSA Overview


The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the DF13 Series.Among other features are LOW PROFILE, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -35°C~85°C.

DF13-4P-1.25DSA Features


DF13 series


DF13-4P-1.25DSA Applications


There are a lot of Hirose Electric Co Ltd
DF13-4P-1.25DSA Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
