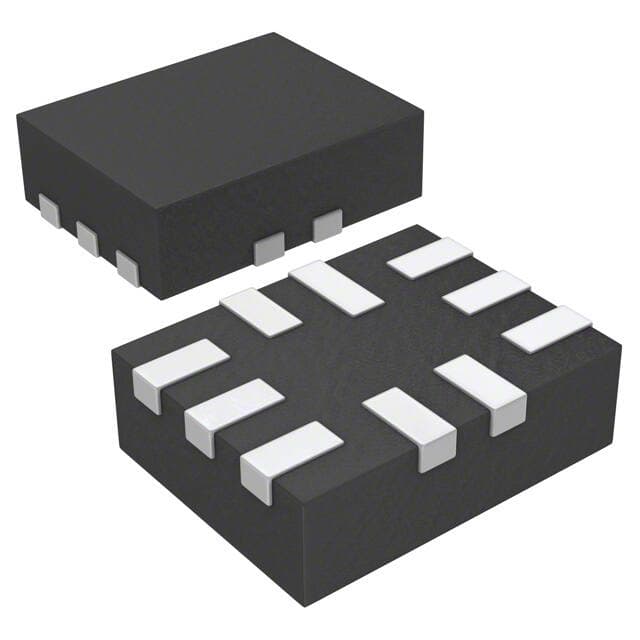

VISHAY DG2722DN-T1-E4

Manufacturer No:

DG2722DN-T1-E4

Manufacturer:

VISHAY

Package:

10-UFQFN

Description:

30ns, 25ns DPDT 8Ohm QUAD Analog Switches BREAK-BEFORE-MAKE DG2722 10 Pins 100nA 3V 10-UFQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DG2722DN-T1-E4 information

VISHAY DG2722DN-T1-E4 technical specifications, attributes, parameters and parts with similar specifications to VISHAY DG2722DN-T1-E4.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
10-UFQFN

Number of Pins
10

Weight
7.002332mg

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2016

JESD-609 Code
e4

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

Resistance
8Ohm

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Multiplexer or Switches

Max Power Dissipation
208mW

Technology
CMOS

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
3V

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
DG2722

Pin Count
10

Operating Supply Voltage
3V

Power Supplies
3V

Number of Channels
1

Number of Circuits
2

Max Supply Voltage
4.3V

Min Supply Voltage
2.6V

Operating Supply Current
2?A

Power Dissipation
208mW

Turn On Delay Time
30 ns

Data Rate
480 Mbps

Supply Type
Single

Bandwidth
900MHz

Turn-Off Delay Time
25 ns

On-State Resistance (Max)
8Ohm

Multiplexer/Demultiplexer Circuit
2:2

Off-state Isolation-Nom
30 dB

Current - Leakage (IS(off)) (Max)
100nA

Channel Capacitance (CS(off), CD(off))
2.2pF

On-state Resistance Match-Nom
0.8Ohm

Switch Circuit
DPDT

Switch Time (Ton, Toff) (Max)
30ns, 25ns

Charge Injection
0.5pC

Channel-to-Channel Matching (?Ron)
800m ?

Download datasheets and manufacturer documentation for VISHAY DG2722DN-T1-E4.

Datasheets:

vishaysiliconix-dg2722dnt1e4-datasheets-8533.pdf

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

DG2722DN-T1-E4 Overview

Shipping overseas is convenient with the electronic component packed in 10-UFQFN. High reliability is provided by advanced packaging method Tape & Reel (TR). In Surface Mount, this analog switch is mounted. Multiplexers and demultiplexers have a ratio of 2:2. Temperatures around -40°C~85°C TA are extended for operation. Total terminations are 10. High-quality output is provided by the electronic component's 1 channels. If the voltage supply is 3V volts, the electrical component should be turned on and run. The electronic part body is injected with 10 pins. A DPDT switching circuit is used to build these analog multiplexers. There are 2 circuits in this multiplexer. Try searching with DG2722 if you're looking for variants. There is 8Ohm internal resistance in this digital multiplexer. For functions related to 10 pins, please refer to the datasheets. Theswitch device is a typical Multiplexer or Switches. A voltage higher than 4.3V should not normally be supplied to the switches. Analogue multiplexers of the Single supply type that are cost-effective. 2.6V should be the lowest voltage fed to the electronic component. For this multiplexer to operate, 2?A current would be sufficient. This analog switch requires a voltage of 2.6V~4.3V to drain from a single voltage supply. 3V operating voltages are supported by the electronic component. A 900MHz-bandwidth can be used for data transfer. The analogue multiplexer has 4 outputs.

DG2722DN-T1-E4 Features

1 Channels
Switch Circuit: DPDT
2?A Supply Current
Bandwidth: 900MHz

DG2722DN-T1-E4 Applications

There are a lot of Vishay Siliconix
DG2722DN-T1-E4 Analog Switches & Multiplexers ICs applications.

Transmit
Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
