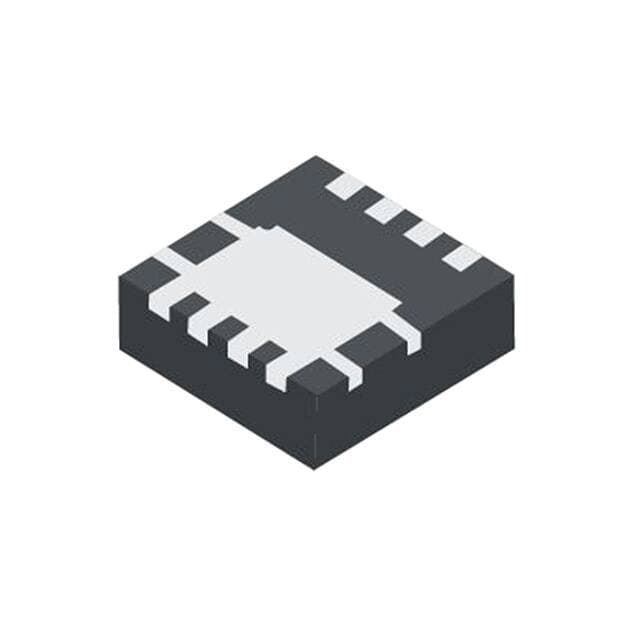

DIODES DMP2006UFG-7
DIODES DMP2006UFG-7

DIODES DMP2006UFG-7

Manufacturer No:

DMP2006UFG-7

Manufacturer:

DIODES

Package:

8-PowerVDFN

Description:

MOSFET (Metal Oxide) P-Channel Tape & Reel (TR) 5.2m ? @ 15A, 4.5V ±10V 5404pF @ 10V 140nC @ 10V 20V 8-PowerVDFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DMP2006UFG-7 information

DIODES DMP2006UFG-7 technical specifications, attributes, parameters and parts with similar specifications to DIODES DMP2006UFG-7.

  • Type
  • Parameter
  • Factory Lead Time
  • 23 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 8-PowerVDFN
  • Number of Pins
  • 8
  • Weight
  • 72.007789mg
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2008
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Capacitance
  • 5.404nF
  • Technology
  • MOSFET (Metal Oxide)
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Number of Channels
  • 1
  • Power Dissipation-Max
  • 2.3W Ta
  • Element Configuration
  • Single
  • Turn On Delay Time
  • 9.1 ns
  • FET Type
  • P-Channel
  • Rds On (Max) @ Id, Vgs
  • 5.2m ? @ 15A, 4.5V
  • Input Capacitance (Ciss) (Max) @ Vds
  • 5404pF @ 10V
  • Current - Continuous Drain (Id) @ 25°C
  • 17.5A Ta 40A Tc
  • Gate Charge (Qg) (Max) @ Vgs
  • 140nC @ 10V
  • Rise Time
  • 19ns
  • Drain to Source Voltage (Vdss)
  • 20V
  • Drive Voltage (Max Rds On,Min Rds On)
  • 1.5V 4.5V
  • Vgs (Max)
  • ±10V
  • Fall Time (Typ)
  • 104 ns
  • Turn-Off Delay Time
  • 146 ns
  • Continuous Drain Current (ID)
  • 40A
  • Gate to Source Voltage (Vgs)
  • 10V
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for DIODES DMP2006UFG-7.

Environmental Information:

DMP2006UFG-7 Overview


A device's maximum input capacitance is 5404pF @ 10V, but its input capacitance parameter, CI, is measured as the capacitance between the input terminals of the device with either input grounded.Its continuous drain current is 40A for this device. Drain current refers to the capacity of the device to conduct continuous current.A device's turn-off delay time is the amount of time it takes to charge its input capacitance before drain current conduction can begin, which is 146 ns.Before drain current conduction begins, the device's input capacitance must be charged, so the delay time is 9.1 ns.Generally, the gate-source voltage (VGS) of a FET transistor is the voltage across its gate-source terminal, which is 10V.To operate this transistor, you need to apply a 20V drain to source voltage (Vdss).This device uses no drive voltage (1.5V 4.5V) to reduce its overall power consumption.

DMP2006UFG-7 Features


a continuous drain current (ID) of 40A
the turn-off delay time is 146 ns
a 20V drain to source voltage (Vdss)


DMP2006UFG-7 Applications


There are a lot of Diodes Incorporated
DMP2006UFG-7 applications of single MOSFETs transistors.


  • Power Tools
  • Motor Drives and Uninterruptible Power Supples
  • Synchronous Rectification
  • Battery Protection Circuit
  • Telecom 1 Sever Power Supplies
  • Industrial Power Supplies
  • PFC stages, hard switching PWM stages and resonant switching
  • PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
  • Lighting, Server, Telecom and UPS.
  • DC-to-DC converters
