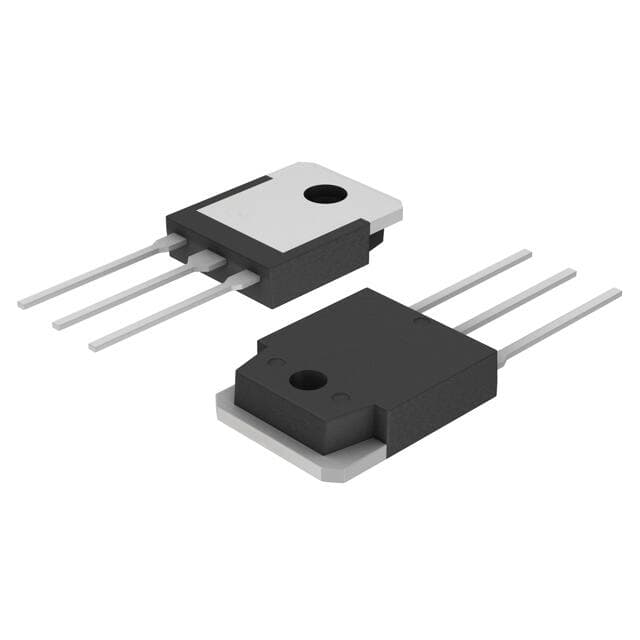

LITTELFUSE DPG60C200QB
LITTELFUSE DPG60C200QB

LITTELFUSE DPG60C200QB

Manufacturer No:

DPG60C200QB

Manufacturer:

LITTELFUSE

Package:

TO-3P-3, SC-65-3

Description:

Standard Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~175°C 30A 200V-DC 2-Element TO-3P-3, SC-65-3 Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DPG60C200QB information

LITTELFUSE DPG60C200QB technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE DPG60C200QB.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-3P-3, SC-65-3
  • Number of Pins
  • 3
  • Weight
  • 5.500006g
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Series
  • HiPerFRED²?
  • Published
  • 2006
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • PURE TIN
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • FREEWHEELING DIODE, SNUBBER DIODE, LOW LEAKAGE CURRENT
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Technology
  • AVALANCHE
  • Terminal Position
  • SINGLE
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 2
  • Element Configuration
  • Common Cathode
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 1?A @ 200V
  • Power Dissipation
  • 160W
  • Voltage - Forward (Vf) (Max) @ If
  • 1.34V @ 30A
  • Forward Current
  • 30A
  • Max Reverse Leakage Current
  • 1?A
  • Operating Temperature - Junction
  • -55°C~175°C
  • Max Surge Current
  • 360A
  • Application
  • FAST SOFT RECOVERY
  • Forward Voltage
  • 1.06V
  • Max Reverse Voltage (DC)
  • 200V
  • Average Rectified Current
  • 30A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 35 ns
  • Max Repetitive Reverse Voltage (Vrrm)
  • 200V
  • Diode Configuration
  • 1 Pair Common Cathode
  • Max Forward Surge Current (Ifsm)
  • 300A

Download datasheets and manufacturer documentation for LITTELFUSE DPG60C200QB.

Datasheets:

DPG60C200QB Overview


The device operates when the forward voltage is set to 1.06V.Array should be a rule to monArrayor the surge current and not allow Array to exceed 360A.The device operates when the forward voltage is set to 30A.The maximum reverse leakage current from this semiconductor is 1?A, which corresponds to the reverse leakage current from that device when reverse biased.By virtue of its primary function, this electronic or electrical device generates 160W kcal of heat (energy loss).

DPG60C200QB Features


1.06V forward voltage


DPG60C200QB Applications


There are a lot of IXYS
DPG60C200QB applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
