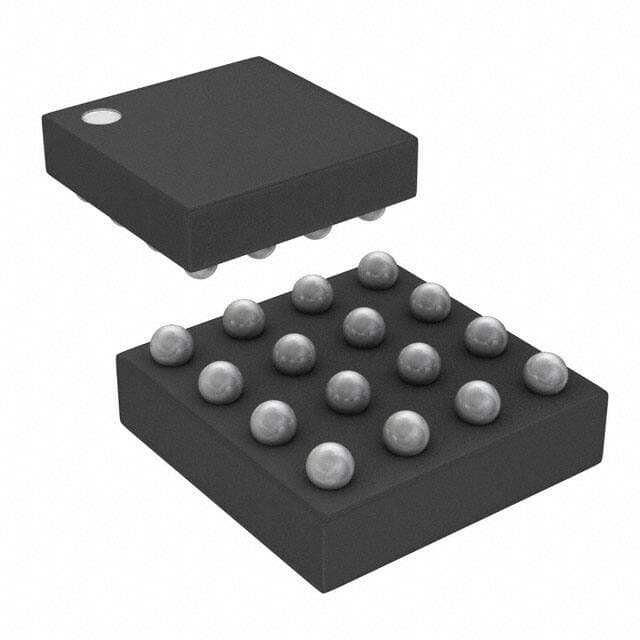

ADI DS1859B-050+T&R

Manufacturer No:

DS1859B-050+T&R

Manufacturer:

ADI

Package:

16-LBGA, CSPBGA

Description:

DS1859 Digital Potentiometers I2C 256 Positions Min 2.85V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DS1859B-050+T&R information

ADI DS1859B-050+T&R technical specifications, attributes, parameters and parts with similar specifications to ADI DS1859B-050+T&R.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-LBGA, CSPBGA

Number of Pins
16

Supplier Device Package
16-CSBGA (4x4)

Operating Temperature
-40°C~95°C

Packaging
Tape & Reel (TR)

Published
2006

Tolerance
±20%

Feature
Selectable Address, Temperature Sensor

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Temperature Coefficient
50 ppm/°C

Resistance
50kOhm

Number of Positions
256

Max Operating Temperature
95°C

Min Operating Temperature
-40°C

Voltage - Supply
2.85V~5.5V

Base Part Number
DS1859

Operating Supply Voltage
5V

Configuration
Rheostat

Interface
I2C

Number of Circuits
2

Min Supply Voltage
2.85V

Nominal Supply Current
2mA

Memory Type
Non-Volatile

Taper
Linear

Number of Taps
256

Temperature Coefficient (Typ)
50ppm/°C

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ADI DS1859B-050+T&R.

Datasheets:

maximintegrated-ds1859b050-datasheets-3164.pdf

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

DS1859B-050+T&R Overview

A package containing it contains 16-LBGA, CSPBGA.As of Non-Volatile, this pentometer has been stored.The digital potentiometer embeds 2 circuits.Tape & Reel (TR) package contains the access code to secure the digital potentiometer.For this pentometer, there are 256 taps that protect against overcurrent.In total, pentometer has 256 positions.You should mount in the way of Surface Mount.2.85V~5.5V voltage is available from the potentionmeter.With this digital potentiometer, the temperature range is -40°C~95°C.A flow rate limit of 50kOhm is possible.In the DS1859 family, pentometer belongs.Mounted to Surface Mount is digital potentiometer.potentiameter with 16 pins.Selectable Address, Temperature Sensor can be found using this digital variable resistor.Potentiometers conduct when provided with a supply voltage of 5V.Having the maximum setting 95°C ensures stable operation of the digital resistor.A temperature of -40°C is necessary to maintain its reliability.A maximum voltage of 5.5V can be delivered to it.2.85V is the minimum supply voltage it can operate at.

DS1859B-050+T&R Features

Available in 16-LBGA, CSPBGA package
2 Circuits
Mounting Type: Surface Mount
Operate temperature at the range of -40°C~95°C
16 pins
Operate supply voltage at the range of 5V

DS1859B-050+T&R Applications

There are a lot of Maxim Integrated
DS1859B-050+T&R Digital Potentiometers applications.

Power supply
Power meter
Automatic detection of equipment
Optic fiber network
Adjusting the LCD Display
Voltage control
Replaces mechanical potentiometers
Matching Linear Impedance
Adjust VCOM settings
Communication device
