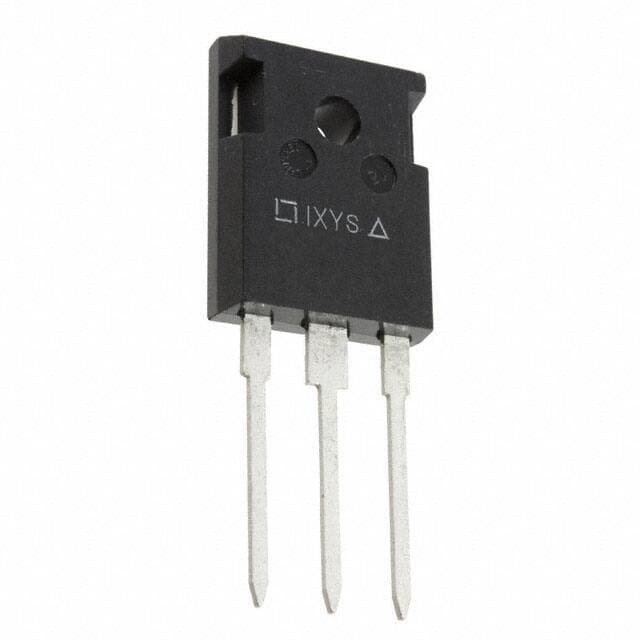

LITTELFUSE DSSK30-0045A

Manufacturer No:

DSSK30-0045A

Manufacturer:

LITTELFUSE

Package:

TO-3P-3 Full Pack

Description:

Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~175°C 15A 45V-DC 2-Element TO-3P-3 Full Pack Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSSK30-0045A information

LITTELFUSE DSSK30-0045A technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE DSSK30-0045A.

Type
Parameter

Mount
Radial, Through Hole

Mounting Type
Through Hole

Package / Case
TO-3P-3 Full Pack

Diode Element Material
SILICON

Packaging
Tube

Published
2006

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Max Operating Temperature
175°C

Min Operating Temperature
-55°C

Additional Feature
HIGH RELIABILITY, FREE WHEELING DIODE, LOW NOISE

HTS Code
8541.10.00.80

Subcategory
Rectifier Diodes

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
3

JESD-30 Code
R-PSFM-T3

Qualification Status
Not Qualified

Number of Elements
2

Power Dissipation-Max
105W

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
500?A @ 45V

Voltage - Forward (Vf) (Max) @ If
660mV @ 15A

Max Reverse Leakage Current
500?A

Operating Temperature - Junction
-55°C~175°C

Max Surge Current
280A

Application
POWER

Forward Voltage
660mV

Max Reverse Voltage (DC)
45V

Average Rectified Current
15A

Number of Phases
1

JEDEC-95 Code
TO-247AD

Peak Non-Repetitive Surge Current
280A

Diode Configuration
1 Pair Common Cathode

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LITTELFUSE DSSK30-0045A.

Datasheets:

ixys-dssk300045a-datasheets-0890.pdf

ixys-dssk300045a-datasheets-3374.pdf

DSSK30-0045A Overview

In this case, the forward voltage has to be set at 660mV to operate the device.Maintaining a surge current under 280A and not letting it exceed it is the key to preventing it.A semiconductor device's maximum reverse leakage current is 500?A, which is the current created by its reverse bias.

DSSK30-0045A Features

660mV forward voltage

DSSK30-0045A Applications

There are a lot of IXYS
DSSK30-0045A applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
