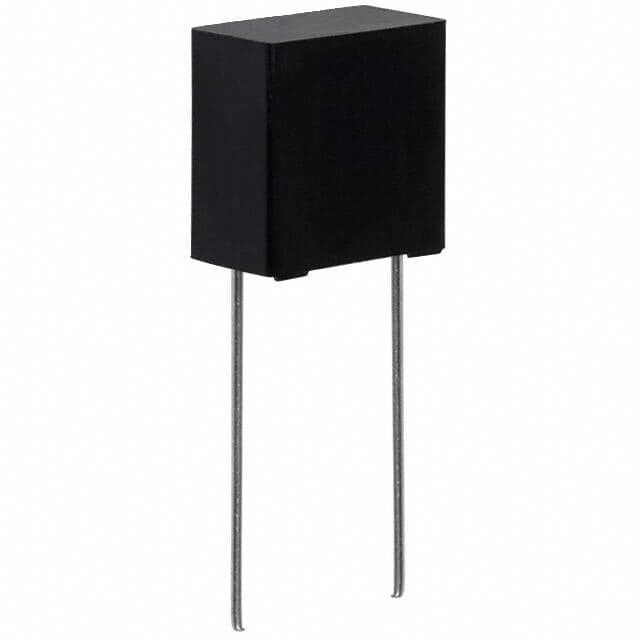

PANASONIC ECQ-U2A334ML

Manufacturer No:

ECQ-U2A334ML

Manufacturer:

PANASONIC

Package:

Radial

Description:

ECQ-UL 0.33?F Film Capacitor ±20% Radial PC Pins 909mV-DC 275V-AC Polyester, Metallized Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ECQ-U2A334ML information

PANASONIC ECQ-U2A334ML technical specifications, attributes, parameters and parts with similar specifications to PANASONIC ECQ-U2A334ML.

Type
Parameter

Factory Lead Time
17 Weeks

Contact Plating
Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Polyester, Metallized

Operating Temperature
-40°C~100°C

Packaging
Bulk

Series
ECQ-UL

Published
2000

Size / Dimension
0.689Lx0.374W 17.50mmx9.50mm

Tolerance
±20%

JESD-609 Code
e3

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
PC Pins

ECCN Code
EAR99

Applications
EMI, RFI Suppression

Capacitance
0.33?F

Voltage - Rated DC
909mV

Depth
9.5mm

Voltage - Rated AC
275V

Lead Pitch
15mm

Capacitor Type
FILM CAPACITOR

Lead Length
20mm

Dielectric
PET

Lead Spacing
0.591 15.00mm

Multilayer
No

Lead Diameter
800 ?m

Lead/Base Style
Straight

Height
17.5mm

Height Seated (Max)
0.709 18.00mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
X2

Download datasheets and manufacturer documentation for PANASONIC ECQ-U2A334ML.

ECQ-U2A334ML Overview

Electrical devices with 0.591 15.00mm lead spacing are used in this application.A temperature of -40°C~100°C is suitable for operation of the device.

ECQ-U2A334ML Features

ECQ-U2A334ML Applications

There are a lot of Panasonic Electronic Components
ECQ-U2A334ML applications of film capacitors.

Industrial and automotive inverters
Battery management system
Test and measuring equipment
RF Modules
Mobile communications
Satellite TV
Global positioning systems
Filters
VCO's
Matching networks
