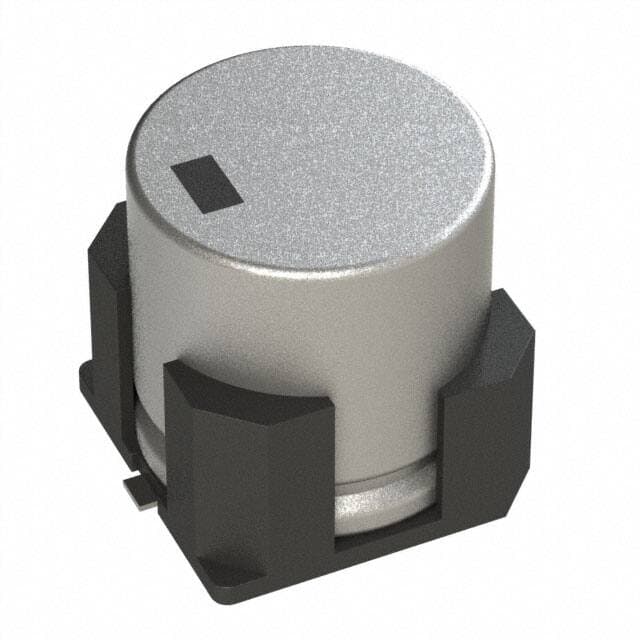

PANASONIC EEE-FT1H331GV

Manufacturer No:

EEE-FT1H331GV

Manufacturer:

PANASONIC

Package:

Radial, Can - SMD

Description:

FT 330?F Capacitor ±20% Tape & Reel (TR) Surface Mount 0.394Dia 10.00mm -55°C~105°C Polar Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EEE-FT1H331GV information

PANASONIC EEE-FT1H331GV technical specifications, attributes, parameters and parts with similar specifications to PANASONIC EEE-FT1H331GV.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Surface Mount Land Size
0.406Lx0.406W 10.30mmx10.30mm

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
FT

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
Automotive, High Temperature Reflow

Voltage - Rated
50V

Capacitance
330?F

ESR (Equivalent Series Resistance)
120mOhm @ 100kHz

Lifetime @ Temp
5000 Hrs @ 105°C

Polarization
Polar

Ripple Current @ Low Frequency
585mA @ 120Hz

Ripple Current @ High Frequency
900mA @ 100kHz

Height Seated (Max)
0.425 10.80mm

RoHS Status
RoHS Compliant

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for PANASONIC EEE-FT1H331GV.

EEE-FT1H331GV Overview

As far as the ripple current is concerned, it is 900mA @ 100kHz at full charge.The ESR (Equivalent Series Resistance) of 120mOhm @ 100kHz needs to be provided to fully play its function.As far as the ripple current is concerned, it is 585mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.425 10.80mm.The operating temperature should be maintained at -55°C~105°C for high efficiency.

EEE-FT1H331GV Features

the ripple current is 900mA @ 100kHz.
the ripple current is 585mA @ 120Hz.
an operating temperature of -55°C~105°C

EEE-FT1H331GV Applications

There are a lot of Panasonic Electronic Components
EEE-FT1H331GV applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
