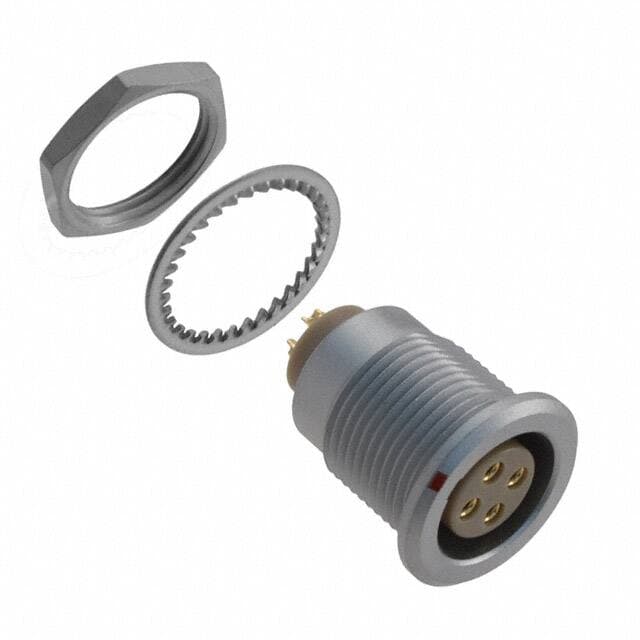

LEMO EGG.2B.304.CLL
LEMO EGG.2B.304.CLL

LEMO EGG.2B.304.CLL

Manufacturer No:

EGG.2B.304.CLL

Manufacturer:

LEMO

Package:

Description:

Receptacle, Female Sockets Panel Mount 4 Positions Solder Cup Gold Chrome Bulk G Push-Pull

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EGG.2B.304.CLL information

LEMO EGG.2B.304.CLL technical specifications, attributes, parameters and parts with similar specifications to LEMO EGG.2B.304.CLL.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Material
  • Bronze
  • Mount
  • Flanges, Panel, Rear Side Nut
  • Mounting Type
  • Panel Mount
  • Mounting Feature
  • Bulkhead - Rear Side Nut
  • Material
  • Brass
  • Insert Material
  • Polyetheretherketone (PEEK)
  • Operating Temperature
  • -55°C~250°C
  • Packaging
  • Bulk
  • Series
  • 2B
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder Cup
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 4
  • Color
  • Silver
  • Gender
  • Receptacle
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • Orientation
  • G
  • Shielding
  • Shielded
  • Ingress Protection
  • IP50 - Dust Protected
  • Current Rating
  • 15A
  • Shell Finish
  • Chrome
  • Contact Gender
  • Female
  • Contact Style
  • Socket
  • Diameter
  • 19.2mm
  • Length
  • 26.7mm
  • Contact Finish Thickness - Mating
  • 59.0?in 1.50?m
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Ratings
  • IP50

Download datasheets and manufacturer documentation for LEMO EGG.2B.304.CLL.

Datasheets:

Environmental Information:

PCN Assembly/Origin:

ConflictMineralStatement:

EGG.2B.304.CLL Overview


The product is packaged in Receptacle, Female Sockets.This device is mounted in the Panel Mount position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 2B Series.Part Flanges, Panel, Rear Side Nut is mounted to the part.As a result, the device runs at -55°C~250°C Operating Temperature.

EGG.2B.304.CLL Features


2B series


EGG.2B.304.CLL Applications


There are a lot of LEMO
EGG.2B.304.CLL Circular Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
