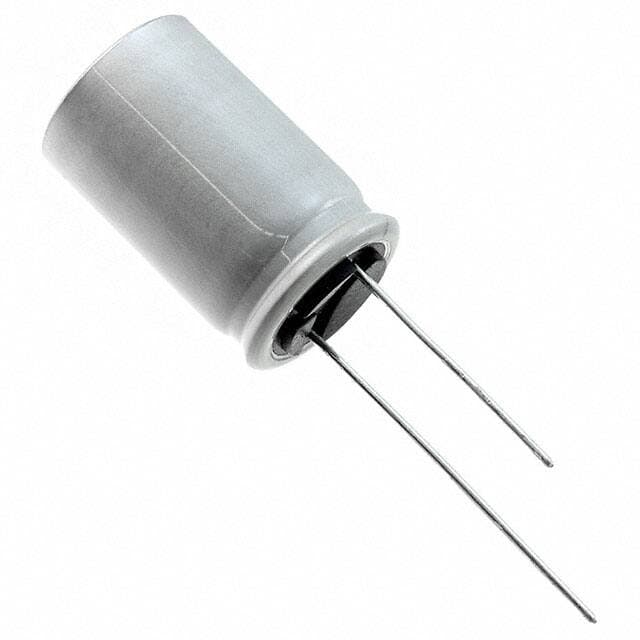

United Chemi-Con EGPD350ELL302ML25H

Manufacturer No:

EGPD350ELL302ML25H

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

GPD 3000μF Capacitor ±20% Bulk Through Hole 2.87A 0.630Dia 16.00mm -40°C~135°C Polar 7.493mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EGPD350ELL302ML25H information

United Chemi-Con EGPD350ELL302ML25H technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EGPD350ELL302ML25H.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~135°C

Packaging
Bulk

Series
GPD

Published
2015

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Applications
Automotive

Capacitance
3000μF

Voltage - Rated DC
35V

Lead Pitch
7.493mm

ESR (Equivalent Series Resistance)
28mOhm @ 100kHz

Lead Spacing
0.295 7.50mm

Lifetime @ Temp
3000 Hrs @ 135°C

Ripple Current
2.87A

Polarization
Polar

Life (Hours)
3000 hours

Ripple Current @ Low Frequency
3.195A @ 120Hz

Lead/Base Style
Straight

Diameter
16mm

Height
16mm

Height Seated (Max)
1.043 26.50mm

RoHS Status
RoHS Compliant

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con EGPD350ELL302ML25H.

Datasheets:

unitedchemicon-egpd101ell221mk25h-datasheets-1758.pdf

unitedchemicon-egpd350ell302ml25h-datasheets-1216.pdf

EGPD350ELL302ML25H Overview

With a full charge, the ripple current is 4.26A @ 100kHz.Defining 28mOhm @ 100kHz as an ESR (Equivalent Series Resistance) is essential.When the charge is at the lowest, the ripple current is 3.195A @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 1.043 26.50mm.Voltage - Rated DC of 35V controls this capacitor.High efficiency requires the operating temperature to be -40°C~135°C.

EGPD350ELL302ML25H Features

the ripple current is 4.26A @ 100kHz.
the ripple current is 3.195A @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~135°C

EGPD350ELL302ML25H Applications

There are a lot of United Chemi-Con
EGPD350ELL302ML25H applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
