AMD EK-U1-ZCU102-G

Manufacturer No:

EK-U1-ZCU102-G

Manufacturer:

AMD

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EK-U1-ZCU102-G information

AMD EK-U1-ZCU102-G technical specifications, attributes, parameters and parts with similar specifications to AMD EK-U1-ZCU102-G.

Type
Parameter

Factory Lead Time
10 Weeks

Packaging
Box

Series
Zynq® UltraScale+?

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
FPGA

Contents
Board(s), Cable(s), Power Supply, Accessories

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for AMD EK-U1-ZCU102-G.

Datasheets:

xilinxinc-eku1zcu102es2g-datasheets-8441.pdf

xilinxinc-eku1zcu102es2g-datasheets-8442.pdf

xilinxinc-eku1zcu102g-datasheets-0432.pdf

xilinx-eku1zcu102g-datasheets-7589.pdf

Environmental Information:

xilinxinc-xcmechff1738-environmentalinformation-4888.pdf

EK-U1-ZCU102-G Description

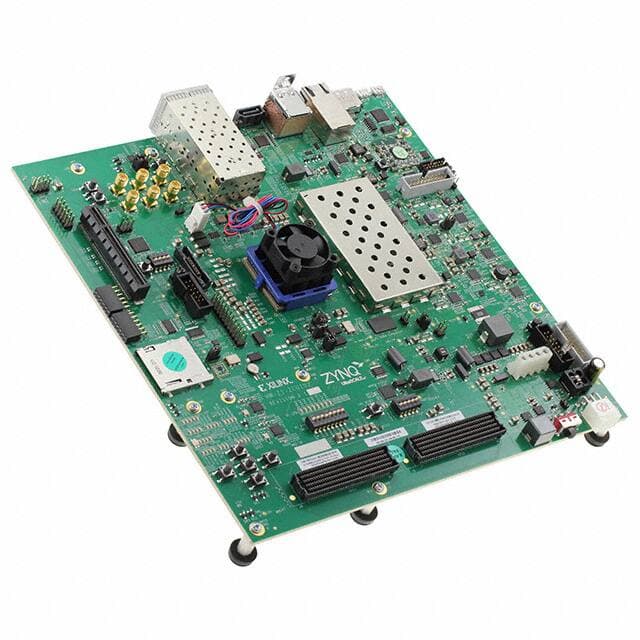

The ZCU102 is a general purpose evaluation board for rapid-prototyping based on the Zynq® UltraScale+? XCZU9EG-2FFVB1156E MPSoC (multiprocessor system-on-chip). High speed DDR4 SODIMM and component memory interfaces, FMC expansion ports, multi-gigabit per second serial transceivers, a variety of peripheral interfaces, and FPGA logic for user customized designs provides a flexible prototyping platform.

EK-U1-ZCU102-G Features

XCZU9EG-2FFVB1156E MPSoC

PL VCCINT for range in datasheet

Form factor for PCIe Gen2x4 Host, Micro-ATX chassis footprint

Configuration from QSPI

Configuration from SD card

Configuration over JTAG with PC4 header

Configuration over JTAG with Arm 20-pin header

Configuration over USB-to-JTAG Bridge

Clocks (PL-system, PS_CLK, Programmable Clock, SMA, SMA_GT_REF, Ethernet, USB)

PS DDR4 64-bit SODIMM

PL DDR4 component (16-bit)

PS GTR assignment

User Guide
