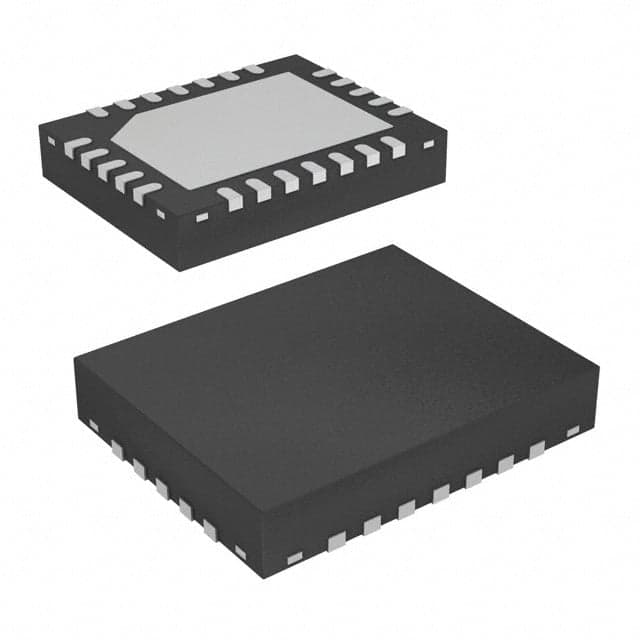

Renesas EL1503ACL

Manufacturer No:

EL1503ACL

Manufacturer:

Renesas

Package:

QFN

Description:

24 Terminations 24 Pin Receivers 2 Bits 2 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL1503ACL information

Renesas EL1503ACL technical specifications, attributes, parameters and parts with similar specifications to Renesas EL1503ACL.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
24

Packaging
Bulk

Published
2002

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

HTS Code
8542.39.00.01

Subcategory
Line Driver or Receivers

Technology
BIPOLAR

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
12V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
24

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Power Supplies
+-12V

Differential Output
NO

Input Characteristics
DIFFERENTIAL

Interface IC Type
LINE DRIVER

Driver Number of Bits
2

Interface Standard
GENERAL PURPOSE

Negative Supply Voltage-Nom
-12V

Out Swing-Min
18.6 V

High Level Input Current-Max
0.000008A

Length
5mm

Width
4mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL1503ACL.

EL1503ACL Overview

Designed for common LEDs, this driver IC features an enhanced QFN package.There is a Bulk package for this receiver.An output voltage range of 12V is sufficient to run this line driver ic efficiently.There are 24 terminations in this wide receiver so that signals can be driven from the data and received.The transceiver is packaged with 24 market standard pinouts so that it can be easily used.24-pin driver chip with enhanced power dissipation.A combination of optical transceiver downsizing and high-density Surface Mount mounting reduces the package size dramatically.In this ic receiver, the resolution was able to be set to a maximum of 2 bits.There is a subcategory called Line Driver or Receivers for this rf transceiver module.It is designed so that it can be operated from a +-12V power supply with this driver IC.LINE DRIVER is the IC type of ic receiver, used for controlling and managing information sharing.In addition, this transceiver module can't operate at temperatures higher than 85°C.Temperatures above -40°C are ideal for operation.You should keep the temperature of the line driver ic above -12V during operation.
