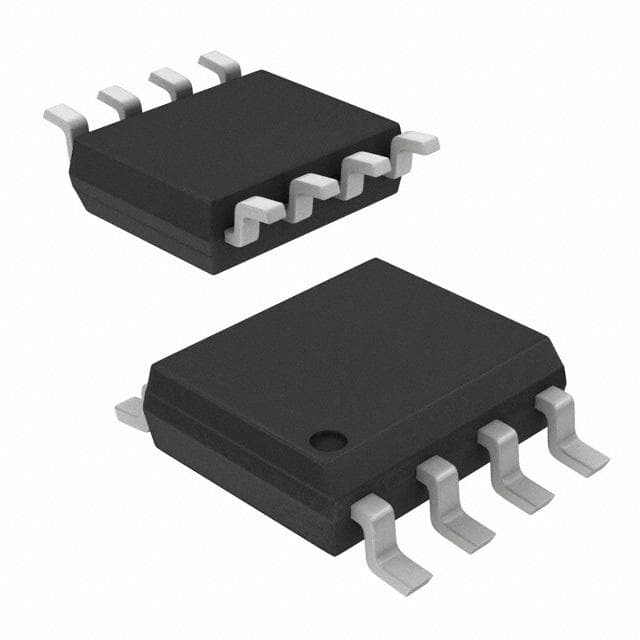

Renesas EL5178ISZ

Manufacturer No:

EL5178ISZ

Manufacturer:

Renesas

Package:

SOIC

Description:

1 Channels 100mA per Channel 14μA 65 dB Instrumentational OP Amps 9V SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5178ISZ information

Renesas EL5178ISZ technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5178ISZ.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Published
2005

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Line Driver or Receivers

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
40

Operating Supply Voltage
9V

Power Supplies
+-5V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Min Supply Voltage
4.75V

Operating Supply Current
12.5mA

Nominal Supply Current
14mA

Slew Rate
850 V/μs

Common Mode Rejection Ratio
65 dB

Current - Input Bias
14μA

Output Current per Channel
100mA

Input Offset Voltage (Vos)
1.9mV

Gain Bandwidth Product
350MHz

Differential Output
YES

Power Supply Rejection Ratio (PSRR)
60dB

Input Characteristics
DIFFERENTIAL

Max Dual Supply Voltage
5.5V

-3db Bandwidth
700MHz

Interface IC Type
LINE DRIVER

Driver Number of Bits
1

Min Dual Supply Voltage
2.375V

Interface Standard
GENERAL PURPOSE

Negative Supply Voltage-Nom
-5V

Length
4.9022mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5178ISZ.

EL5178ISZ Overview

There is a SOIC case in which the instrumentation amplifier is packaged. The number of terminations is approaching the 8 mark. The linear amplifier should be run at 5V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Line Driver or Receivers devices. 8 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 1.9mV. It is possible to operate this buffer amplifier from a supply current of 12.5mA . Op amp ic has 1 channels. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, Instrumentation amplifier should not be used. The operating supply voltage of the buffer op amp is rated at 9V. The electrical part is capable of being powered by a voltage of under 11V, which means that it can be used with any voltage supply. As a rule of thumb, the supply voltage of the op amp should not be lower than 4.75V. As a general rule, you should conduct this electronic component under dual supply voltages of 5.5V volts. LINE DRIVER is the type of interface IC on the linear amplifier.

EL5178ISZ Features

supply voltage of 5V

EL5178ISZ Applications

There are a lot of Intersil (Renesas Electronics America)
EL5178ISZ Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
