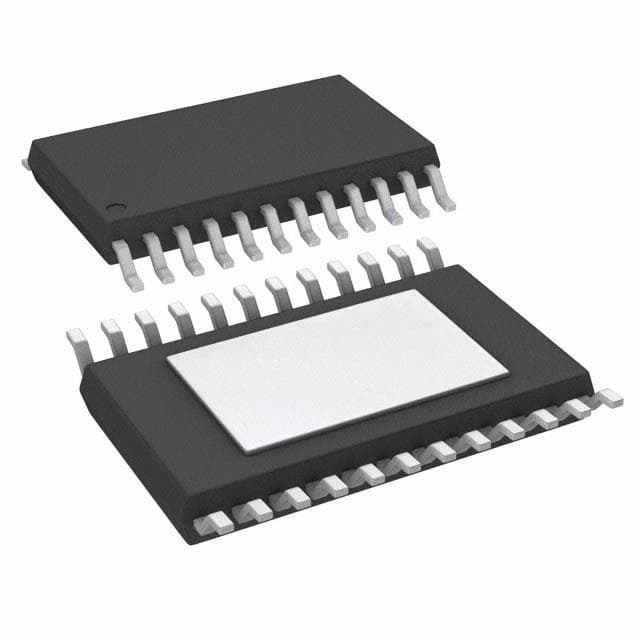

Renesas EL5224IRE-T13

Manufacturer No:

EL5224IRE-T13

Manufacturer:

Renesas

Package:

Description:

8 Channels 140mA per Channel 2nA Instrumentational OP Amps 0.05μA 24 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5224IRE-T13 information

Renesas EL5224IRE-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5224IRE-T13.

Type
Parameter

Mount
Surface Mount

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Buffer Amplifiers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
8

Supply Voltage
15V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
24

JESD-30 Code
R-PDSO-G24

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Operating Supply Current
6.8mA

Slew Rate
15 V/μs

Amplifier Type
BUFFER

Current - Input Bias
2nA

Output Current per Channel
140mA

Input Offset Voltage (Vos)
2mV

Gain Bandwidth Product
8MHz

Average Bias Current-Max (IIB)
0.05μA

-3db Bandwidth
12MHz

Bias Current-Max (IIB) @25C
0.05μA

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL5224IRE-T13.

EL5224IRE-T13 Overview

Buffer amps of this type are called BUFFER-types. A Tape & Reel (TR) case is used to deliver the buffer op amp. The number of terminations is approaching the 24 mark. The total number of pins on linear amplifier is 24. The linear amplifier should be run at 15V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Buffer Amplifiers devices. As far as the input offset voltage is concerned, linear amplifier rates at 2mV. It is possible to operate this buffer amplifier from a supply current of 6.8mA . Op amp ic has 8 channels. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, Instrumentation amplifier should not be used.
