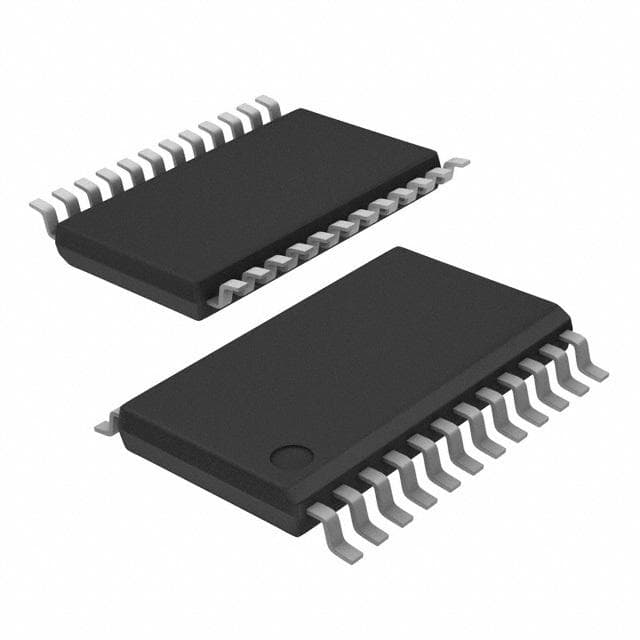

Renesas EL5323CRZ

Manufacturer No:

EL5323CRZ

Manufacturer:

Renesas

Package:

TSSOP

Description:

10 Channels 200mA per Channel 2nA Instrumentational OP Amps 0.05μA 15V 24 Pins TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5323CRZ information

Renesas EL5323CRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5323CRZ.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
24

Published
2002

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
10

Supply Voltage
5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
24

Operating Supply Voltage
15V

Number of Channels
10

Max Supply Voltage
16.5V

Min Supply Voltage
4.5V

Operating Supply Current
6.2mA

Nominal Supply Current
8mA

Current - Output
120mA

Slew Rate
18 V/μs

Amplifier Type
BUFFER

Current - Input Bias
2nA

Output Current per Channel
200mA

Input Offset Voltage (Vos)
500μV

Neg Supply Voltage-Nom (Vsup)
-5V

Voltage Gain
0.086dB

Average Bias Current-Max (IIB)
0.05μA

Max Dual Supply Voltage
8.25V

-3db Bandwidth
12MHz

Min Dual Supply Voltage
2.25V

Bias Current-Max (IIB) @25C
0.05μA

Length
7.8mm

Height Seated (Max)
1.2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5323CRZ.

EL5323CRZ Overview

The linear amplifier is packaged in a TSSOP case. This is a BUFFER type op amp. The number of terminations approaches 24. Buffer amplifier has a total of 24 pins. Please take in mind that this instrumentation amplifier should be run at 5V. To be specific, this instrumentation amplifier is a type of Buffer Amplifier. The buffer op amp includes 24 pins. Regarding input offset voltage, op amp rates 500μV. This op amp can operate from a supply current at 6.2mA. Voltage gain should remain at 0.086dB. The op amp ic has 10 channels on it. The temperature should not be lower than -40°C for operational amplifier ics to operate. Use op amps only at temperatures no higher than 85°C. The operating supply voltage of the buffer op amp is rated at 15V. With regard to the supply voltage, this electrical component is capable of working from under 16.5V. It is advised to keep the op amp's supply voltage higher than 4.5V. You should conduct this electronic component under the dual supply voltage of 8.25V.

EL5323CRZ Features

24 Pins
supply voltage of 5V
0.086dB voltage gain

EL5323CRZ Applications

There are a lot of Intersil (Renesas Electronics America)
EL5323CRZ Instrumentational OP Amps applications.

Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
