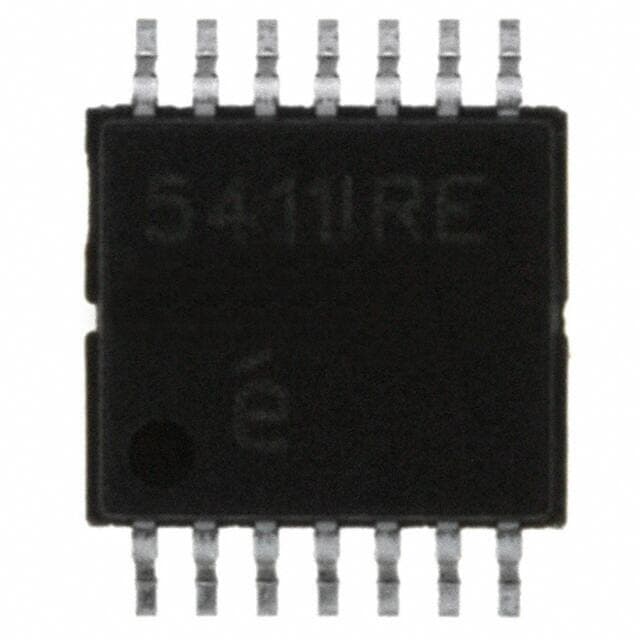

Renesas EL5411IRE

Manufacturer No:

EL5411IRE

Manufacturer:

Renesas

Package:

14-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

2nA Instrumentational OP Amps 4.5V~16.5V ±2.25V~8.25V EL5411 14-TSSOP (0.173, 4.40mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5411IRE information

Renesas EL5411IRE technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5411IRE.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
14-TSSOP (0.173, 4.40mm Width) Exposed Pad

Operating Temperature
-40°C~85°C

Packaging
Tube

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

ECCN Code
EAR99

Subcategory
Operational Amplifier

Reach Compliance Code
unknown

Base Part Number
EL5411

Output Type
Rail-to-Rail

Number of Circuits
4

Current - Supply
10mA

Slew Rate
75V/μs

Amplifier Type
Voltage Feedback

Current - Input Bias
2nA

Voltage - Supply, Single/Dual (±)
4.5V~16.5V ±2.25V~8.25V

Gain Bandwidth Product
32MHz

Voltage - Input Offset
3mV

Current - Output / Channel
65mA

-3db Bandwidth
60MHz

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas EL5411IRE.

EL5411IRE Overview

The linear amplifier is packaged in a 14-TSSOP (0.173, 4.40mm Width) Exposed Pad case. This is a Voltage Feedback type op amp. Linear amplifier is delivered in a Tube case. To be specific, this instrumentation amplifier is a type of Operational Amplifier. Surface Mount is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -40°C~85°C. There are 4 circuits on this op amp. This op amp ic outputs Rail-to-Rail signals, which is one of the many benefits it has. It is recommended that this electronic component be used with an 10mA supply.

EL5411IRE Features

Output Type: Rail-to-Rail

EL5411IRE Applications

There are a lot of Renesas Electronics America Inc.
EL5411IRE Instrumentational OP Amps applications.

Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
