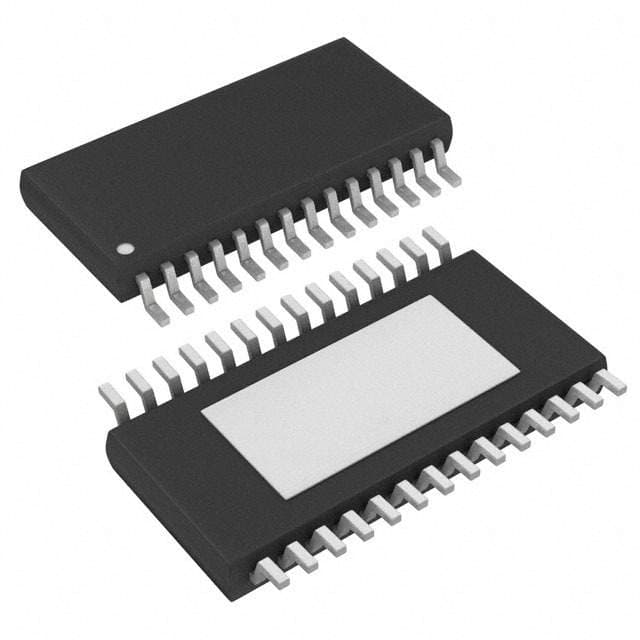

Renesas EL5811IREZ
Manufacturer No:
EL5811IREZ
Manufacturer:
Package:
TSSOP
Description:
8 Channels 65mA per Channel 2nA Instrumentational OP Amps 28 Pins TSSOP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EL5811IREZ information
Renesas EL5811IREZ technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5811IREZ.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- TSSOP
- Published
- 2003
- JESD-609 Code
- e3
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 28
- ECCN Code
- EAR99
- Terminal Finish
- MATTE TIN
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 8
- Terminal Pitch
- 0.65mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Pin Count
- 28
- Qualification Status
- Not Qualified
- Supply Voltage-Max (Vsup)
- 16V
- Temperature Grade
- INDUSTRIAL
- Supply Voltage-Min (Vsup)
- 4.5V
- Number of Channels
- 8
- Operating Supply Current
- 2.5mA
- Slew Rate
- 75 V/μs
- Current - Input Bias
- 2nA
- Output Current per Channel
- 65mA
- Input Offset Voltage (Vos)
- 3mV
- Bandwidth
- 60000 kHz
- Gain Bandwidth Product
- 32MHz
- -3db Bandwidth
- 60MHz
- Consumer IC Type
- VIDEO AMPLIFIER
- Length
- 9.7mm
- Height Seated (Max)
- 1.2mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas EL5811IREZ.
EL5811IREZ Overview
In the package, you will find a TSSOP-case to contain the op amp ic. During the past two weeks, there have been close to 28 terminations. A total of 28 pins are located on this board. Op amp rates 3mV as input offset voltage. Using an 2.5mA supply current, this operational amplifier ics can be operated. On the buffer amps, there are 8 channels that can be used. To operate this buffer amplifier, the temperature must not be lower than -40°C. A temperature greater than 85°C should not be used for the operation of this instrumentation amplifier. The current is quiescent at 2.5mA. Using the VIDEO AMPLIFIER column, it is possible to sort by the consumer IC type of the electric component.
EL5811IREZ Features
28 Pins
EL5811IREZ Applications
There are a lot of Intersil (Renesas Electronics America)
EL5811IREZ Instrumentational OP Amps applications.
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
- Signal operation
- Video computer boards
