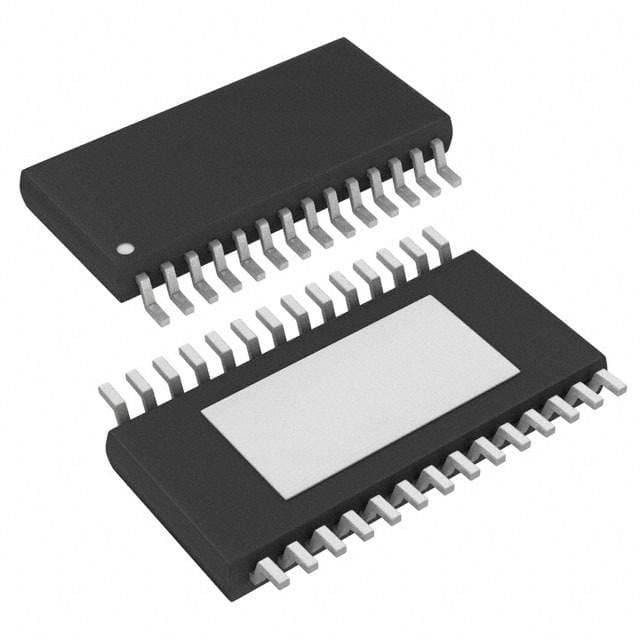

Renesas EL5824IREZ-T7

Manufacturer No:

EL5824IREZ-T7

Manufacturer:

Renesas

Package:

HTSSOP EP

Description:

10 Channels 140mA per Channel 50nA 45 dB Instrumentational OP Amps 0.05μA 8.25V 28 Pins HTSSOP EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5824IREZ-T7 information

Renesas EL5824IREZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5824IREZ-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
HTSSOP EP

Published
2003

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
10

Supply Voltage
15V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
28

JESD-30 Code
R-PDSO-G28

Qualification Status
Not Qualified

Operating Supply Voltage
8.25V

Number of Channels
10

Operating Supply Current
9.5mA

Nominal Supply Current
12.5mA

Current - Output
30mA

Slew Rate
15 V/μs

Amplifier Type
BUFFER

Common Mode Rejection Ratio
45 dB

Current - Input Bias
50nA

Output Current per Channel
140mA

Input Offset Voltage (Vos)
14mV

Gain Bandwidth Product
8MHz

Voltage Gain
0.069dB

Average Bias Current-Max (IIB)
0.05μA

-3db Bandwidth
12MHz

Min Dual Supply Voltage
2.25V

Length
9.7mm

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5824IREZ-T7.

EL5824IREZ-T7 Overview

A HTSSOP EP case is used to package the op amp. BUFFER-type instrumentation amplifiers are used in this application. It is estimated that there will be 28 terminations in the next few months. There are a total of 28 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 15V volts. It should be noted that this op amp is a type of Buffer Amplifier device. In terms of the input offset voltage, instrumentation amplifier rates at 14mV. An 9.5mA volt supply current is needed for this linear amplifier to operate. There should be no change in the voltage gain. There are 10 channels on the operational amplifiers. In order for op amp to function properly, the temperature should not be lower than -40°C degrees Celsius. Instrumentation amplifier should only be used at temperatures up to 85°C. The operating supply voltage of the buffer op amp is rated at 8.25V.

EL5824IREZ-T7 Features

28 Pins
supply voltage of 15V
0.069dB voltage gain

EL5824IREZ-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5824IREZ-T7 Instrumentational OP Amps applications.

Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
