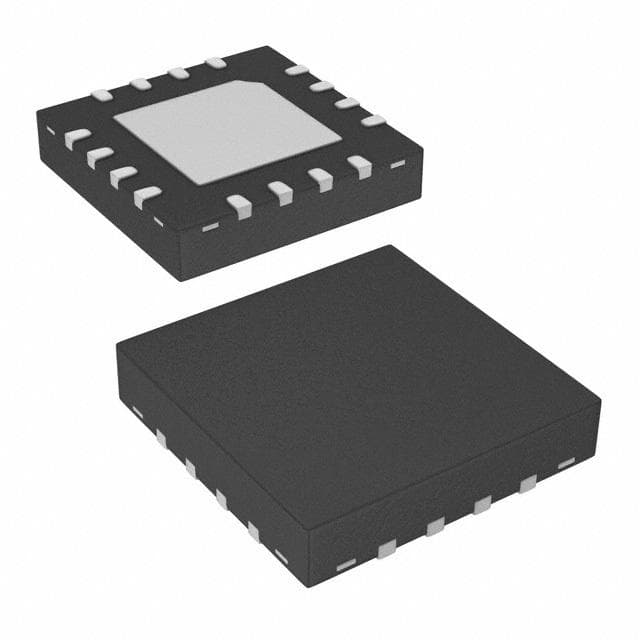

Renesas EL7457CL

Manufacturer No:

EL7457CL

Manufacturer:

Renesas

Package:

VQFN

Description:

Discontinued EAR99 Gate Drivers ICs VQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL7457CL information

Renesas EL7457CL technical specifications, attributes, parameters and parts with similar specifications to Renesas EL7457CL.

Type
Parameter

Mount
Surface Mount

Package / Case
VQFN

Number of Pins
16

Published
2002

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Peripheral Drivers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
4

Supply Voltage
5V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Frequency
40MHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
16

Qualification Status
Not Qualified

Max Output Current
2A

Temperature Grade
INDUSTRIAL

Max Supply Voltage
16.5V

Min Supply Voltage
5V

Propagation Delay
1.5 ns

Turn On Delay Time
14.5 ns

Rise Time
13.5ns

Fall Time (Typ)
13 ns

Turn-Off Delay Time
12.5 ns

Interface IC Type
BUFFER OR INVERTER BASED MOSFET DRIVER

Driver Number of Bits
4

Negative Supply Voltage-Nom
-5V

Output Peak Current Limit-Nom
2A

Supply Voltage1-Nom
5V

High Side Driver
YES

Height Seated (Max)
1mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL7457CL.

Datasheets:

intersil-el7457cl-datasheets-9953.pdf

EL7457CL Overview

For greater flexibility, the VQFN package is adopted.Mosfet driver consists of 16 terminations as Mosfet drivers foundation.The device is mounted using Surface Mount.The pins are configured with 16 when designing the chip.The device is specifically designed to operate at 5V volts.Its interface IC is BUFFER OR INVERTER BASED MOSFET DRIVER.2A is the maximum output current.There are various useful electronic components in its subcategory Peripheral Drivers.There are 16 component pins on the board.Based on its basis, it integrates 4 outputs.Mosfet gate drivers is permissible to operate at a temperature of 85°C.Operating temperatures can be as low as -40°C.For operation, 16.5V is the maximum supply voltage.For operation, 5V is the minimum supply voltage.When 40MHz is used frequently, efficiency can be improved.

EL7457CL Features

16 pins

EL7457CL Applications

There are a lot of Intersil (Renesas Electronics America)
EL7457CL gate drivers applications.

PCMCIA applications
A/D drivers
Line drivers
Portable computers
High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
