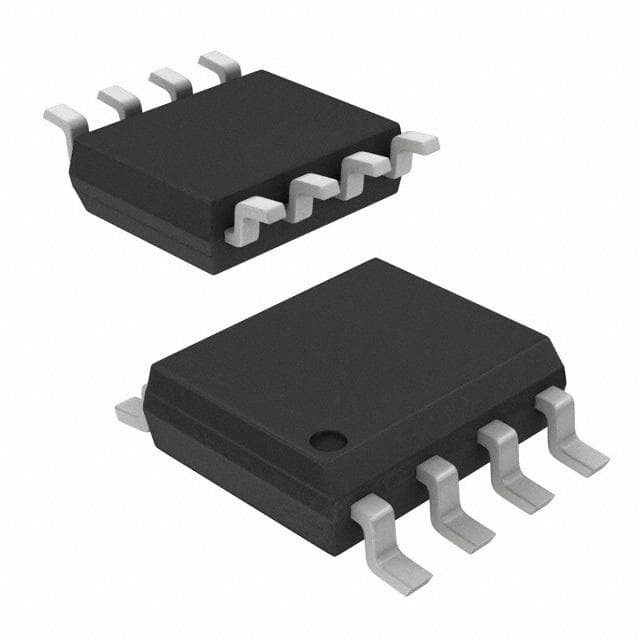

Renesas EL8170ISZ

Manufacturer No:

EL8170ISZ

Manufacturer:

Renesas

Package:

SOIC

Description:

32mA per Channel 700pA Instrumentational OP Amps 0.002μA 8 Pins SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL8170ISZ information

Renesas EL8170ISZ technical specifications, attributes, parameters and parts with similar specifications to Renesas EL8170ISZ.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Published
2004

JESD-609 Code
e3

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Instrumentation Amplifiers

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

JESD-30 Code
R-PDSO-G8

Qualification Status
Not Qualified

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Operating Supply Current
65μA

Supply Current-Max
0.078mA

Slew Rate
0.55 V/μs

Amplifier Type
INSTRUMENTATION AMPLIFIER

Current - Input Bias
700pA

Output Current per Channel
32mA

Input Offset Voltage (Vos)
50μV

Average Bias Current-Max (IIB)
0.002μA

Supply Voltage Limit-Max
5.5V

-3db Bandwidth
192 kHz

Input Offset Current-Max (IIO)
0.002μA

Voltage Gain-Min
100

Voltage Gain-Nom
200

Length
4.9mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL8170ISZ.

EL8170ISZ Overview

Op amp is packaged in SOIC case. Op amps are INSTRUMENTATION AMPLIFIER types of amplifier on the chip. The number of terminations approaches 8. Linear amplifier has a total of 8 pins. Please take in mind that op amp should be run at 5V. Instrumentation amplifier is a part of Instrumentation Amplifiers. Regarding input offset voltage, buffer amplifier rates 50μV voltage. Operational amplifier can operate supply current at 65μA. There are 1 circuits on op amps. It should not lower than -40°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 125°C. To conduct electronic part voltage gain higher than 100.
