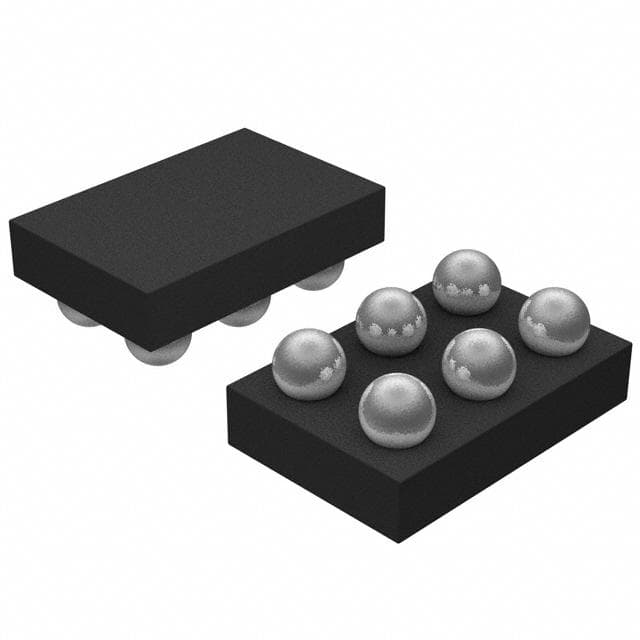

Renesas EL8176FIZ-T7
Manufacturer No:
EL8176FIZ-T7
Manufacturer:
Package:
125
Description:
31mA per Channel 500pA 90 dB Instrumentational OP Amps 0.005μA 5V 6 Pins 125
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EL8176FIZ-T7 information
Renesas EL8176FIZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL8176FIZ-T7.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- 125
- Number of Pins
- 6
- Packaging
- Tape & Reel
- Published
- 2006
- Part Status
- Discontinued
- Number of Terminations
- 6
- ECCN Code
- EAR99
- Max Operating Temperature
- 125°C
- Min Operating Temperature
- -40°C
- Subcategory
- Operational Amplifiers
- Packing Method
- TAPE AND REEL
- Technology
- BICMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Number of Functions
- 1
- Supply Voltage
- 5V
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Pin Count
- 6
- Qualification Status
- Not Qualified
- Operating Supply Voltage
- 5V
- Power Supplies
- 5V
- Number of Circuits
- 1
- Operating Supply Current
- 85μA
- Nominal Supply Current
- 75μA
- Current - Output
- 31mA
- Voltage - Output
- 4.997V
- Slew Rate
- 0.13 V/μs
- Architecture
- VOLTAGE-FEEDBACK
- Amplifier Type
- OPERATIONAL AMPLIFIER
- Common Mode Rejection Ratio
- 90 dB
- Current - Input Bias
- 500pA
- Output Current per Channel
- 31mA
- Input Offset Voltage (Vos)
- 75μV
- Bandwidth
- 400 kHz
- Gain Bandwidth Product
- 400 kHz
- Unity Gain BW-Nom
- 400 kHz
- Voltage Gain
- 113.98dB
- Average Bias Current-Max (IIB)
- 0.005μA
- Low-Offset
- YES
- Frequency Compensation
- YES
- Low-Bias
- NO
- Micropower
- YES
- -3db Bandwidth
- 1MHz
- Bias Current-Max (IIB) @25C
- 0.002μA
Download datasheets and manufacturer documentation for Renesas EL8176FIZ-T7.
Datasheets:
EL8176FIZ-T7 Overview
There is a 125 case in which the instrumentation amplifier is packaged. Buffer amps of this type are called OPERATIONAL AMPLIFIER-types. A Tape & Reel case is used to deliver the buffer op amp. The number of terminations is approaching the 6 mark. The total number of pins on linear amplifier is 6. The linear amplifier should be run at 5V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifiers devices. 6 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 75μV. It is possible to operate this buffer amplifier from a supply current of 85μA . 113.98dB should be the voltage gain. A linear amplifier like this has 1 circuits on it. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 125°C, Instrumentation amplifier should not be used. The operating supply voltage of the buffer op amp is rated at 5V. For the packing of the instrumentation amplifier, TAPE AND REEL is adopted.
EL8176FIZ-T7 Features
6 Pins
supply voltage of 5V
113.98dB voltage gain
EL8176FIZ-T7 Applications
There are a lot of Intersil (Renesas Electronics America)
EL8176FIZ-T7 Instrumentational OP Amps applications.
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
