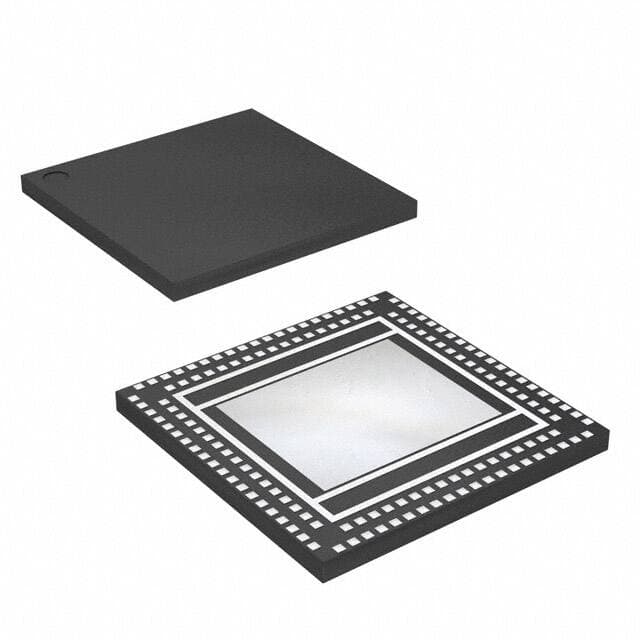

INTEL EP4CGX15BN11C8N
Manufacturer No:
EP4CGX15BN11C8N
Manufacturer:
Package:
148-WFQFN Dual Rows, Exposed Pad
Description:
FPGAs Cyclone® IV GX Series 148-WFQFN Dual Rows, Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EP4CGX15BN11C8N information
INTEL EP4CGX15BN11C8N technical specifications, attributes, parameters and parts with similar specifications to INTEL EP4CGX15BN11C8N.
- Type
- Parameter
- Mounting Type
- Surface Mount
- Package / Case
- 148-WFQFN Dual Rows, Exposed Pad
- Supplier Device Package
- 148-QFN (11x11)
- Operating Temperature
- 0°C~85°C TJ
- Packaging
- Tray
- Series
- Cyclone® IV GX
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Voltage - Supply
- 1.16V~1.24V
- Base Part Number
- EP4CGX15
- Number of I/O
- 72
- Number of Logic Elements/Cells
- 14400
- Total RAM Bits
- 552960
- Number of LABs/CLBs
- 900
Download datasheets and manufacturer documentation for INTEL EP4CGX15BN11C8N.
Datasheets:
EP4CGX15BN11C8N Overview
There is a 148-WFQFN Dual Rows, Exposed Pad package that includes this component. 72 I/Os are available for transferring data more efficiently. A fundamental building block consists of 14400 logic elements/cells. The Surface Mount-slot on the development board allows you to attach the FPGA module. A supply voltage of 1.16V~1.24V is needed in order for fpga chips to operate. As part of the Cyclone® IV GX series of FPGAs, it is a type of FPGA. While operating, the operating temperature should be kept within a range of 0°C~85°C TJ. As a space-saving measure, this FPGA model is contained within Tray. There are 552960 RAM bits that are available with this device. In order to find related parts, you can use its base part number EP4CGX15. 900 LABs and CLBs are built into this FPGA. There is a device package provided by 148-QFN (11x11) as its supplier.
EP4CGX15BN11C8N Features
72 I/Os
Up to 552960 RAM bits
EP4CGX15BN11C8N Applications
There are a lot of Intel
EP4CGX15BN11C8N FPGAs applications.
- Device controllers
- Software-defined radio
- Random logic
- ASIC prototyping
- Medical imaging
- Computer hardware emulation
- Integrating multiple SPLDs
- Voice recognition
- Cryptography
- Filtering and communication encoding
