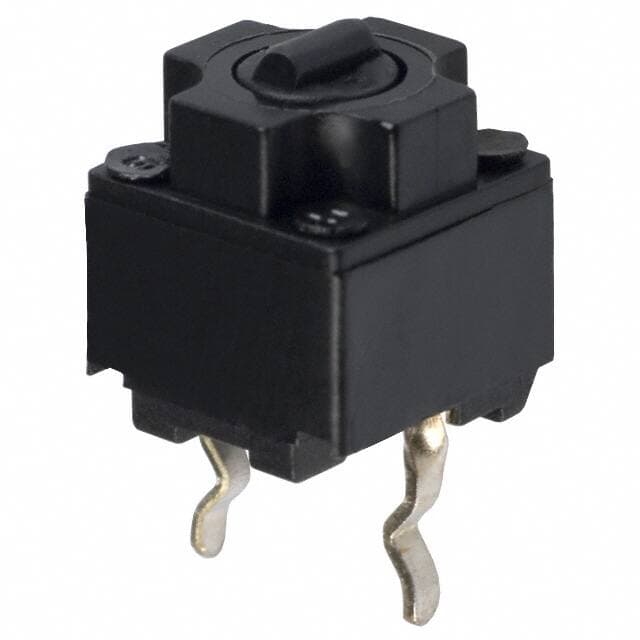

PANASONIC EVQ-P0D07K
PANASONIC EVQ-P0D07K

PANASONIC EVQ-P0D07K

Manufacturer No:

EVQ-P0D07K

Manufacturer:

PANASONIC

Package:

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EVQ-P0D07K information

PANASONIC EVQ-P0D07K technical specifications, attributes, parameters and parts with similar specifications to PANASONIC EVQ-P0D07K.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Silver
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Operating Temperature
  • -20°C~70°C
  • Packaging
  • Bulk
  • Series
  • EVQP0
  • Published
  • 2011
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • PC Pin
  • ECCN Code
  • EAR99
  • Color
  • Black
  • HTS Code
  • 8536.50.90.40
  • Voltage - Rated DC
  • 30V
  • Packing Method
  • BAG; BOX
  • Orientation
  • Straight
  • Depth
  • 6.2mm
  • Current Rating
  • 50mA
  • Termination Style
  • PC Pin
  • Actuator Type
  • Standard
  • Circuit
  • SPST-NO
  • Contact Resistance
  • 100mOhm
  • Contact Current(DC)-Max
  • 0.05A
  • Max Current Rating
  • 50mA
  • Electrical Life
  • 1e+06 cycles
  • Throw Configuration
  • SPST
  • Illumination
  • Non-Illuminated
  • Max Voltage Rating (DC)
  • 30V
  • Mechanical Life
  • 1,000,000 Cycles
  • Switch Type
  • KEYPAD SWITCH
  • Contact Current Rating
  • 50mA
  • Operating Force
  • 130gf
  • Illumination Type
  • Illuminated, Non-Illuminated
  • Actuator Orientation
  • Top Actuated
  • Contact (DC) Max Rating R Load
  • .05A@30VDC
  • Outline
  • 6.20mm x 6.20mm
  • Contact Rating @ Voltage
  • 0.05A @ 30VDC
  • Switch Travel
  • 0.50mm
  • Number of Switches
  • 1
  • Contact Bounce Time-Max
  • 8ms
  • Height
  • 7.45mm
  • Length
  • 6.2mm
  • Width
  • 6.2mm
  • Actuator Length
  • 450?m

Download datasheets and manufacturer documentation for PANASONIC EVQ-P0D07K.

Datasheets:

PCN Packaging:

Description: The Panasonic EVQ-P0D07K is a tactile switch with a single pole single throw (SPST) configuration. It is designed for use in printed circuit boards (PCBs) and features a 0.05A current rating and a 30VDC voltage rating. The switch has a 1.3N actuation force and is available in a thru-hole bulk package.

Features:
- SPST configuration
- 0.05A current rating
- 30VDC voltage rating
- 1.3N actuation force
- Thru-hole bulk package

Applications: The Panasonic EVQ-P0D07K tactile switch is suitable for a wide range of applications, including consumer electronics, automotive, and industrial control systems. It can be used to control the on/off state of a circuit, as well as to provide tactile feedback to the user.
