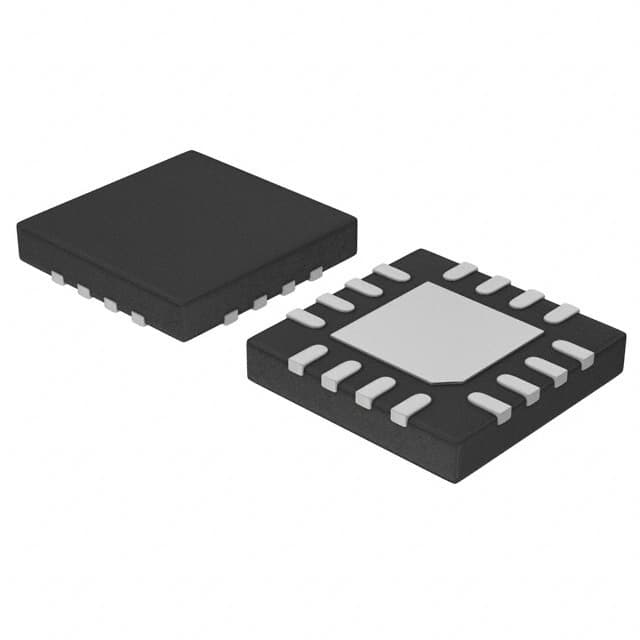

ONSEMI FAN6230AMPX

Manufacturer No:

FAN6230AMPX

Manufacturer:

ONSEMI

Package:

16-WFQFN Exposed Pad

Description:

PMIC 16-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FAN6230AMPX information

ONSEMI FAN6230AMPX technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FAN6230AMPX.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-WFQFN Exposed Pad

Weight
160mg

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Published
2015

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Applications
Secondary-Side Controller, Synchronous Rectifier

HTS Code
8542.31.00.01

Voltage - Supply
1.9V~16V

Operating Supply Current
6mA

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI FAN6230AMPX.

FAN6230AMPX Overview

There is a Tape & Reel (TR) package for it. As a result, it is included in the 16-WFQFN Exposed Pad package in order to conserve space. The mounting is done in accordance with Surface Mount. As long as -40°C~125°C is maintained, the device should function properly. For Secondary-Side Controller, Synchronous Rectifier, it is an excellent choice due to its exceptional performance. Due to the low 1.9V~16V supply voltage, the system is capable of high efficiency. Power comes from a supply current of 6mA. Surface Mount method is used for mounting it.

FAN6230AMPX Features

16-WFQFN Exposed Pad package
Mounting type of Surface Mount

FAN6230AMPX Applications

There are a lot of ON Semiconductor
FAN6230AMPX Power Supply Control ICs applications.

Command and control center
Smart home
User-available push-button control panel
Computer monitor
Touch screen
Remote control
Projector
Visualizer
DVD player
VCR
