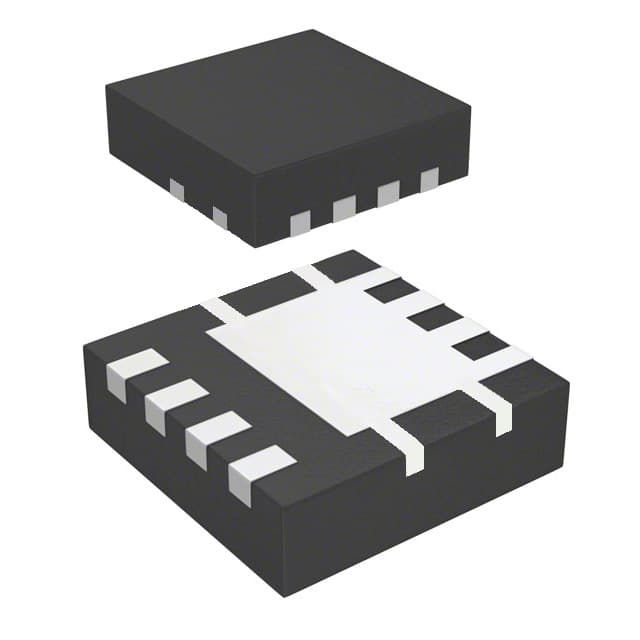

ONSEMI FDMC5614P

Manufacturer No:

FDMC5614P

Manufacturer:

ONSEMI

Package:

8-PowerWDFN

Description:

P-Channel PowerTrench<sup>®</sup> MOSFET -60V, -13.5A, 100mΩ

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FDMC5614P information

ONSEMI FDMC5614P technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FDMC5614P.

Type
Parameter

Wide SOA Mosfets
0

Vgs (V)
±20

Case Outline
511DR

Channel Polarity
P-Channel

Crss Typ (pF)
60

MSL Temp (°C)
260

Qrr Typ (nC)
29

RDS(on) Max @ VGS = 2.5 V (mΩ)
-

Coss Typ (pF)
140

Package Type
WDFN-8

Container Qty.
3000

Qg Typ @ VGS = 10 V (nC)
15

Ciss Typ (pF)
795

Configuration
Single

PD Max (W)
42

Gate Level
Logic

ID Max (A)
-13.5

RDS(on) Max @ VGS = 4.5 V (mΩ)
135

Qg Typ @ VGS = 4.5 V (nC)
37

Container Type
REEL

Silicon Family
PowerTrench® T1

Vgs(th) Max (V)
-3

Qgd Typ @ VGS = 4.5 V (nC)
2.7

Type
Low-Medium Voltage

MSL Type
1

Package Name
Power 33 (u8FL)

OPN in older Technology
0

RDS(on) Max @ VGS = 10 V (mΩ)
100

Download datasheets and manufacturer documentation for ONSEMI FDMC5614P.

Datasheet:

e7d97ce15a97ca5542c5e71136971605.pdf

Package Drawing:

9fdba8e14845a9128790e34b79ebf877.pdf

This P-Channel MOSFET is a rugged gate version of an advanced Power Trench process. It has been optimized for power management applications requiring a wide range of gate drive voltage ratings (4.5V-20V).

Application

This product is general usage and suitable for many different applications.

Feature

Max r_DS(on) = 100 mΩ @ V_GS = -10 V,I_D = -5.7A
Max r_DS(on) = 135 mΩ @ V_GS = -4.5 V,I_D = -4.4A
Low gate charge
Fast switching speed
High performance trench technology for extremely low r_DS(on)
High power and current handling capability
RoHS Compliant
