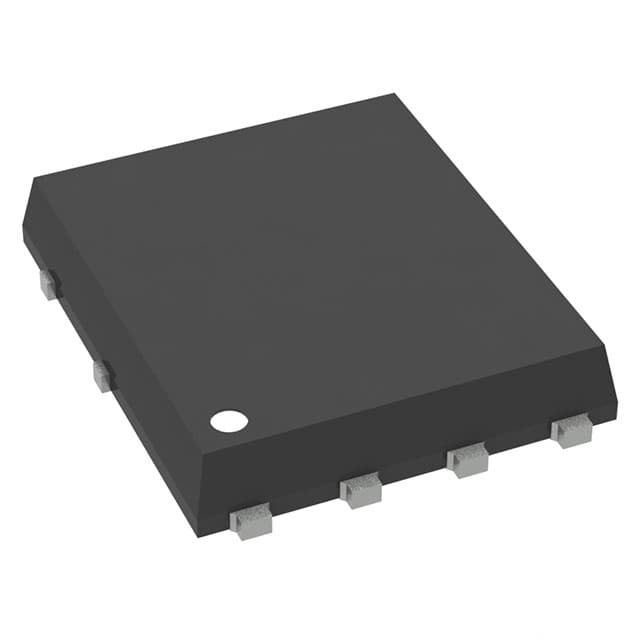

ONSEMI FDMS6681Z
ONSEMI FDMS6681Z

ONSEMI FDMS6681Z

Manufacturer No:

FDMS6681Z

Manufacturer:

ONSEMI

Package:

8-PowerTDFN

Description:

P-Channel PowerTrench<sup>®</sup> MOSFET -30V, -122A, 3.2mΩ

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FDMS6681Z information

ONSEMI FDMS6681Z technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FDMS6681Z.

  • Type
  • Parameter
  • Case Outline
  • 483AE
  • RDS(on) Max @ VGS = 10 V (mΩ)
  • 3.2
  • Configuration
  • Single
  • V(BR)DSS Min (V)
  • -30
  • Package Type
  • PQFN-8
  • MSL Temp (°C)
  • 260
  • RDS(on) Max @ VGS = 2.5 V (mΩ)
  • -
  • Type
  • Low-Medium Voltage
  • Gate Level
  • Logic
  • OPN in older Technology
  • 0
  • Vgs (V)
  • 25
  • Qg Typ @ VGS = 4.5 V (nC)
  • 39
  • Coss Typ (pF)
  • -
  • Container Type
  • REEL
  • Channel Polarity
  • P-Channel
  • PD Max (W)
  • 73
  • Ciss Typ (pF)
  • 7803
  • Crss Typ (pF)
  • -
  • Silicon Family
  • PowerTrench® T1
  • Package Name
  • Power 56 (SO-8FL)
  • Qg Typ @ VGS = 10 V (nC)
  • 97
  • Qgd Typ @ VGS = 4.5 V (nC)
  • -
  • Container Qty.
  • 3000
  • RDS(on) Max @ VGS = 4.5 V (mΩ)
  • 5
  • Vgs(th) Max (V)
  • -3
  • Qrr Typ (nC)
  • -
  • MSL Type
  • 1
  • ID Max (A)
  • -122

Download datasheets and manufacturer documentation for ONSEMI FDMS6681Z.

Datasheet:

Package Drawing:

FDMS6681Z is not recommended for new design. Please apply NTMFS005P03P8ZT1G as a replacement.

Application

  • This product is general usage and suitable for many different applications.

End Product

  • Industrial, Consumer, and High End Computing

Feature

  • Max rDS(on) = 3.2 mΩ at VGS = -10 V, ID = -21.1 A
  • Max rDS(on) = 5.0 mΩ at VGS = -4.5 V, ID = -15.7 A
  • Advanced Package and Silicon combination for low rDS(on) and high efficiency
  • HBM ESD protection level of 8kV typical (Note 3)
  • MSL1 robust package design
  • RoHS Compliant
