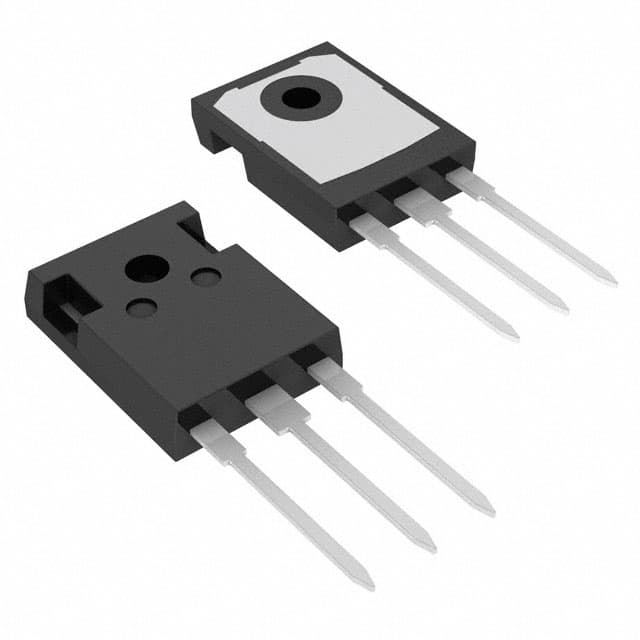

ONSEMI FGH60N60SMD

Manufacturer No:

FGH60N60SMD

Manufacturer:

ONSEMI

Package:

TO-247-3

Description:

IGBT, 600V, 60A, Field Stop

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FGH60N60SMD information

ONSEMI FGH60N60SMD technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FGH60N60SMD.

Type
Parameter

Short Circuit Withstand (µs)
-

EAS Typ (mJ)
-

Co-Packaged Diode
Yes

Gate Charge Typ (nC)
187

VCE(sat) Typ (V)
1.9

VF Typ (V)
2.1

Trr Typ (ns)
72

Irr Typ (A)
-

Package Type
TO-247-3

Family
-

IC Max (A)
60

Eoff Typ (mJ)
0.39

Case Outline
340CK

MSL Temp (°C)
0

Container Type
TUBE

Container Qty.
450

V(BR)CES Typ (V)
600

Eon Typ (mJ)
1.59

PD Max (W)
600

MSL Type
NA

Download datasheets and manufacturer documentation for ONSEMI FGH60N60SMD.

Datasheet:

7e1d571b104da3e511238c2d4affc352.pdf

Package Drawing:

d9bfb84b240ee385ab61b5dd070dac5b.pdf

Using novel field stop IGBT technology,onsemi’s new series of field stop 2nd generation IGBTs offer the optimum performance for solar inverter, UPS, welder, telecom, ESS and PFC applications where low conduction and switching losses are essential.

Application

Uninterruptible Power Supply
Energy Generation & Distribution
Other Industrial

Feature

Maximum junction temperature : TJ =175 °C
Positive temperaure co-efficient for easy parallel operating
High current capability
Low saturation voltage: V_CE(sat) =1.9V(Typ.) @ I_C = 60A
High input impedance
Fast switching: E_OFF =7.5uJ/A
Tightened parameter distribution
RoHS compliant
