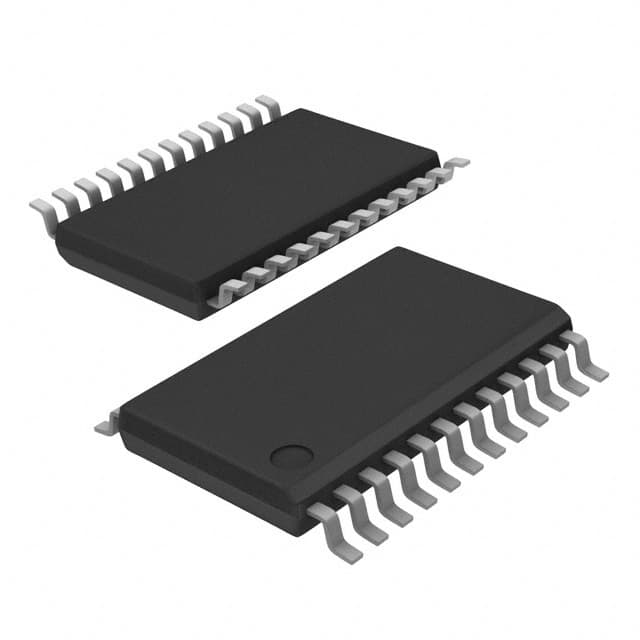

ONSEMI FIN1104MTC

Manufacturer No:

FIN1104MTC

Manufacturer:

ONSEMI

Package:

24-TSSOP (0.173, 4.40mm Width)

Description:

LVDS 4 Port High Speed Repeater

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FIN1104MTC information

ONSEMI FIN1104MTC technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FIN1104MTC.

Type
Parameter

Package Type
TSSOP-24

Container Qty.
1525

VCC Typ (V)
3.3

tpd Typ (ns)
-

fmaxClock Typ (MHz)
-

Input / Output Ratio
1:1

tJitterRMS Typ (ps)
-

tskew(o-o) Max (ps)
-

fmaxData Typ (Mbps)
-

MSL Type
1

MSL Temp (°C)
260

Container Type
TUBE

Channels
4

Input Level
HSTL

tR & tF Max (ps)
-

Case Outline
948AR

Type
Signal Driver

Output Level
LVDS

Download datasheets and manufacturer documentation for ONSEMI FIN1104MTC.

Datasheet:

681969535dd0f540e424da5c626301be.pdf

Package Drawing:

f4c9235fe0531da8c256097586bf4b9f.pdf

This 4 port repeater is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The FIN1104 accepts and outputs LVDS levels with a typical differential output swing of 330 mV which provides low EMI at ultra low power dissipation even at high frequencies. The FIN1104 provides a VBB reference for AC coupling on the inputs. In addition the FIN1104 can directly accept LVPECL, HSTL, and SSTL-2 for translation to LVDS.

Application

Media Tablets
Storage & Peripherals
Mobile Handsets
Wireless LAN Card & Broadband Access
PMP/MP3 Players

Feature

Greater than 800 Mbps data rate
3.3V power supply operation
3.5 ps maximum random jitter and 135 ps maximum deterministic jitter
Wide rail-to-rail common mode range
LVDS receiver inputs accept LVPECL, HSTL, and SSTL-2 directly
Ultra low power consumption
20 ps typical channel-to-channel skew
Power off protection
>7.5 kV HBM ESD Protection
Meets or exceeds the TIA/EIA-644-A LVDS standard
Available in space saving 24-Lead TSSOP package
Open circuit fail safe protection
V_BB >reference output
