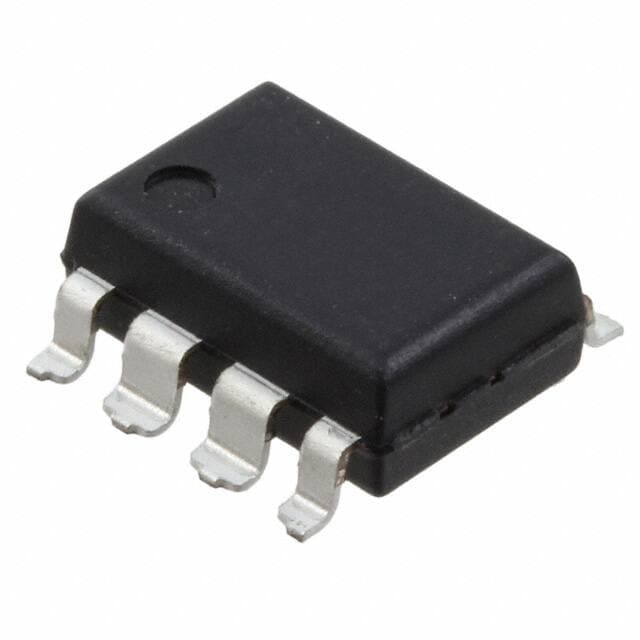

ONSEMI FSDH321L

Manufacturer No:

FSDH321L

Manufacturer:

ONSEMI

Package:

8-SMD, Gull Wing

Description:

8V~20V 8 Pin FSDH321 AC to DC power converter FPS? Series 1 Outputs 100kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FSDH321L information

ONSEMI FSDH321L technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FSDH321L.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-SMD, Gull Wing

Number of Pins
8

Supplier Device Package
8-LSOP

Weight
710mg

Operating Temperature
-25°C~85°C TA

Packaging
Tube

Series
FPS?

Published
2005

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Resistance
14Ohm

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Power (Watts)
17W

Max Power Dissipation
17W

Base Part Number
FSDH321

Number of Outputs
1

Nominal Supply Current
3mA

Power Dissipation
1.4W

Output Current
2A

Voltage - Supply (Vcc/Vdd)
8V~20V

Max Supply Current
3mA

Topology
Flyback

Frequency - Switching
100kHz

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage

Duty Cycle
67%

Output Isolation
Isolated

Voltage - Breakdown
650V

Voltage - Start Up
12V

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI FSDH321L.

ReachStatement:

onsemiconductor-rmpa2550-reachstatement-3729.pdf

FSDH321L Overview

The ac to dc converter is embedded in 8-SMD, Gull Wing package.It is available in Tube AC/DC power converter.This AC/DC converter is mounted in the way of Surface Mount .To deliver its performance, the ac dc converter should be operated at a temperature of -25°C~85°C TA .The switching frequency reaches 100kHz .It can be used within the range of 8V~20V supply voltage (Vcc/Vdd).There are 8 pins on the ac/dc converter.The ac dc converters are suitable to mount by Surface Mount .It is a member of FPS? manufacturer family.You can search similar acdc converters based on FSDH321 family.There are 1 outputs to run.The output current is set to 2A .It is provided with 8-LSOP pacakge.AC to DC converter can handle a maximum supply current of 3mA .The maximum 85°C ensures that the AC to DC power converter runs stablily.This isolated switch's minimum working temperature must not be less than -25°C .This power AC DC's resistance can be determined to be 14Ohm .AC to DC converter consumes quiescent current at 3mA .

FSDH321L Features

Packaged with 8-SMD, Gull Wing
Switching Frequency at 100kHz
With 8 pins
Output Current at 2A
Resistance : 14Ohm

FSDH321L Applications

There are a lot of ON Semiconductor
FSDH321L AC DC Converters applications.

AC/DC Adaptors/Chargers for Cell Phones
AC/DC Adaptors/Chargers for Cordless Phone
AC/DC Adaptors/Chargers for PDAs
AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
