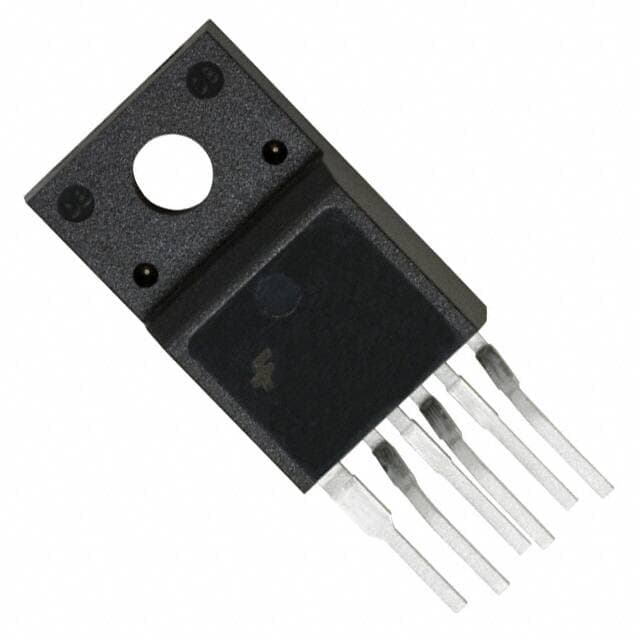

ONSEMI FSQ0465RBWDTU

Manufacturer No:

FSQ0465RBWDTU

Manufacturer:

ONSEMI

Package:

TO-220-6 Full Pack, Formed Leads

Description:

6 Terminations 8V~20V 6 Pin FSQ0465 AC to DC power converter FPS? Series 1 Outputs 48kHz~67kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FSQ0465RBWDTU information

ONSEMI FSQ0465RBWDTU technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FSQ0465RBWDTU.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-6 Full Pack, Formed Leads

Number of Pins
6

Operating Temperature
-25°C~85°C TA

Packaging
Tube

Series
FPS?

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Resistance
2.6Ohm

Additional Feature
ALSO HAS RESONANT CONTROL TECH

Max Power Dissipation
70W

Terminal Position
ZIG-ZAG

Number of Functions
1

Base Part Number
FSQ0465

Number of Outputs
1

Operating Supply Voltage
20V

Input Voltage-Nom
10V

Analog IC - Other Type
SWITCHING REGULATOR

Nominal Supply Current
3mA

Power Dissipation
45W

Output Current
2.64A

Voltage - Supply (Vcc/Vdd)
8V~20V

Turn On Delay Time
12 ns

Control Features
Sync

Input Voltage (Min)
9V

Topology
Flyback

Control Mode
CURRENT-MODE

Frequency - Switching
48kHz~67kHz

Control Technique
PULSE WIDTH MODULATION

Turn-Off Delay Time
30 ns

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit

Output Isolation
Isolated

Voltage - Breakdown
650V

Voltage - Start Up
12V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI FSQ0465RBWDTU.

Datasheets:

onsemiconductor-fsq0465rbwdtu-datasheets-2802.pdf

ReachStatement:

onsemiconductor-rmpa2550-reachstatement-3729.pdf

FSQ0465RBWDTU Overview

There is a ac to dc converter embedded in package TO-220-6 Full Pack, Formed Leads .The ac dc converter is available in Tube case.In this case, the AC/DC converter is mounted in the way of Through Hole .This ac dc converter should be operated at a temperature of -25°C~85°C TA °C so that it can deliver its performance.In this AC DC converter, an analog integrated circuit (IC) of type SWITCHING REGULATOR is employed.When the switching frequency reaches 48kHz~67kHz , the process is complete.The AC/DC converter is capable of being used when the supply voltage is 8V~20V (Vcc/Vdd).There are a total of 6 terminations in it.It contains 6 pins.Through Hole is a suitable mounting point for the ac dc converters.It belongs to a manufacturer family of FPS? .Similar acdc converters can be found using the FSQ0465 family.AC to DC converter is necessary to run 1 outputs.We are setting the output current to 2.64A .Also, ALSO HAS RESONANT CONTROL TECH can be found using this ACDC converter.Interfacing ICs conduct when there is 20V supply voltage.Approximately 3mA amps of supply current can be handled by the power AC DC.It can be determined that the resistance of this power AC DC is 2.6Ohm .

FSQ0465RBWDTU Features

Packaged with TO-220-6 Full Pack, Formed Leads
Switching Frequency at 48kHz~67kHz
With 6 pins
Output Current at 2.64A
Operating Supply Voltage at the range of 20V
Resistance : 2.6Ohm

FSQ0465RBWDTU Applications

There are a lot of ON Semiconductor
FSQ0465RBWDTU AC DC Converters applications.

DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
