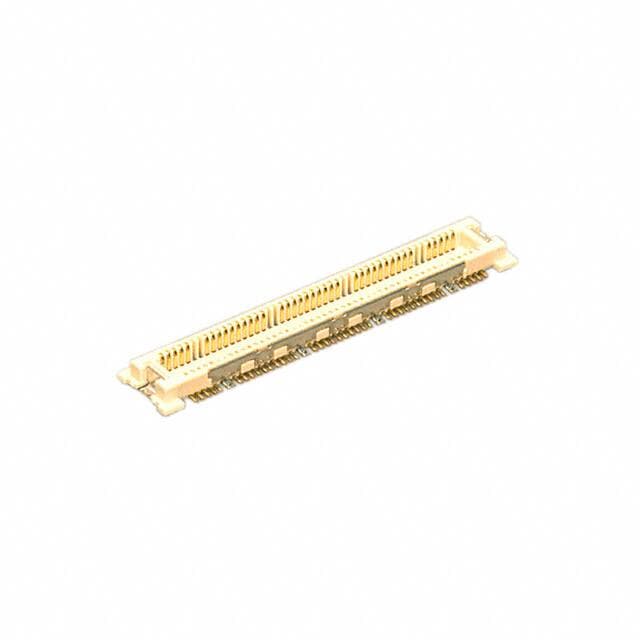

HIROSE FX11LA-80P/8-SV
HIROSE FX11LA-80P/8-SV

HIROSE FX11LA-80P/8-SV

Manufacturer No:

FX11LA-80P/8-SV

Manufacturer:

HIROSE

Package:

Description:

Header, Outer Shroud Contacts Tray 2 Rows 0.020 0.50mm Surface Mount 80 Positions FX11 Gold COPPER ALLOY

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FX11LA-80P/8-SV information

HIROSE FX11LA-80P/8-SV technical specifications, attributes, parameters and parts with similar specifications to HIROSE FX11LA-80P/8-SV.

  • Type
  • Parameter
  • Contact Material
  • COPPER ALLOY
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Housing Material
  • Plastic
  • Packaging
  • Tray
  • Series
  • FX11
  • Published
  • 2003
  • JESD-609 Code
  • e4
  • Feature
  • Board Guide, Ground Plate, Solder Retention
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Connector Type
  • Header, Outer Shroud Contacts
  • Number of Positions
  • 80
  • Number of Rows
  • 2
  • Additional Feature
  • HIGH DENSITY, LOW PROFILE, 8 GROUND CONTACTS ALSO AVAILABLE
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 88
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 2
  • Lead Pitch
  • 500?m
  • PCB Contact Pattern
  • RECTANGULAR
  • Operating Temperature (Max)
  • 85°C
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Contact Gender
  • MALE
  • Operating Temperature (Min)
  • -55°C
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Beige
  • Body Depth
  • 0.075 inch
  • Rated Current (Signal)
  • 0.3A
  • Contact Resistance
  • 60mOhm
  • Insulation Resistance
  • 100000000Ohm
  • Body/Shell Style
  • RECEPTACLE
  • Polarization Key
  • POLARIZED HOUSING
  • Dielectric Withstanding Voltage
  • 150VAC V
  • PCB Contact Row Spacing
  • 4.7498 mm
  • Durability
  • 50 Cycles
  • Contact Pattern
  • RECTANGULAR

Download datasheets and manufacturer documentation for HIROSE FX11LA-80P/8-SV.

Datasheets:

FX11LA-80P/8-SV Overview


Packaging for this item is Header, Outer Shroud Contacts.It is necessary to use a Tray case for packaging the product.There is a mounting type of Surface Mount for this device.This product is part of the FX11 Series.In operation, it is possible to ensure that Board Guide, Ground Plate, Solder Retention is maintained.This part requires a Surface Mount socket for mounting.Moreover, there are a number of other features, including HIGH DENSITY, LOW PROFILE, 8 GROUND CONTACTS ALSO AVAILABLE, to name just a few.

FX11LA-80P/8-SV Features


FX11 series
Package / Case: Tray
Mounting Type:Surface Mount
Additional Feature: HIGH DENSITY, LOW PROFILE, 8 GROUND CONTACTS ALSO AVAILABLE


FX11LA-80P/8-SV Applications


There are a lot of Hirose Electric Co Ltd
FX11LA-80P/8-SV Rectangular Connectors applications.
