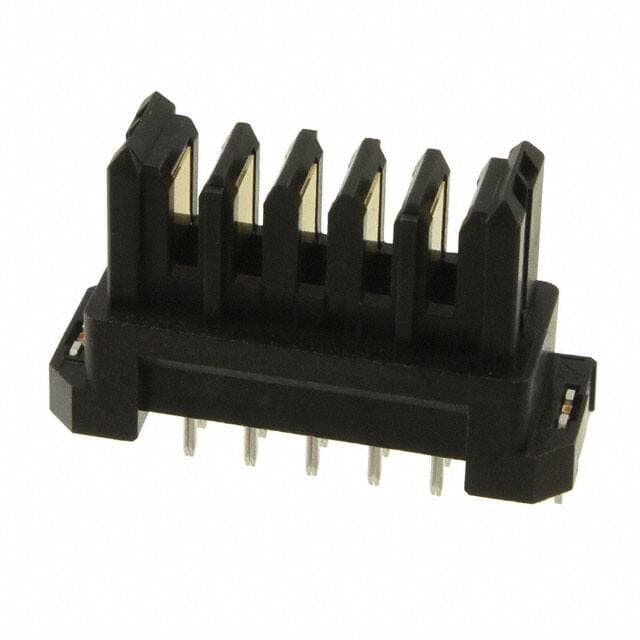

HIROSE FX30B-5P-3.81DSA20
HIROSE FX30B-5P-3.81DSA20

HIROSE FX30B-5P-3.81DSA20

Manufacturer No:

FX30B-5P-3.81DSA20

Manufacturer:

HIROSE

Package:

Description:

FunctionMax? FX30B Series 1-Row Header Solder Copper Alloy Tray Through Hole Gold Polyamide (PA), Nylon 5-Position Board to Board 0.559 14.20mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FX30B-5P-3.81DSA20 information

HIROSE FX30B-5P-3.81DSA20 technical specifications, attributes, parameters and parts with similar specifications to HIROSE FX30B-5P-3.81DSA20.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Rectangular
  • Insulation Material
  • Polyamide (PA), Nylon
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tray
  • Series
  • FunctionMax? FX30B
  • JESD-609 Code
  • e3
  • Feature
  • Board Guide, Board Lock
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 5
  • Number of Rows
  • 1
  • Gender
  • Male
  • Voltage - Rated
  • 250V
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Blade
  • Mixed Contacts
  • YES
  • Orientation
  • Straight
  • Insulation Height
  • 0.559 14.20mm
  • Style
  • Board to Board
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 10A
  • Pitch - Mating
  • 0.150 3.81mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL,TUV
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.130 3.30mm
  • Shrouding
  • Shrouded - 2 Wall
  • Contact Finish - Post
  • Tin
  • Contact Resistance
  • 2mOhm
  • Contact Finish Thickness - Mating
  • 3.90?in 0.099?m
  • Contact Finish Thickness - Post
  • 39.4?in 1.00?m
  • Stack Height (Mating)
  • 20mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for HIROSE FX30B-5P-3.81DSA20.

Datasheets:

FX30B-5P-3.81DSA20 Overview


A Header packaging is included.It's mounted Through Hole.We use a Tray case to package the product.It's from the FunctionMax? FX30B Series.In many ways, its Board Guide, Board Lock feature makes it more powerful.It's mounted by Through Hole.-55°C~105°C Operating Temperature is what the device runs at.

FX30B-5P-3.81DSA20 Features


FunctionMax? FX30B series


FX30B-5P-3.81DSA20 Applications


There are a lot of Hirose Electric Co Ltd
FX30B-5P-3.81DSA20 Rectangular Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
