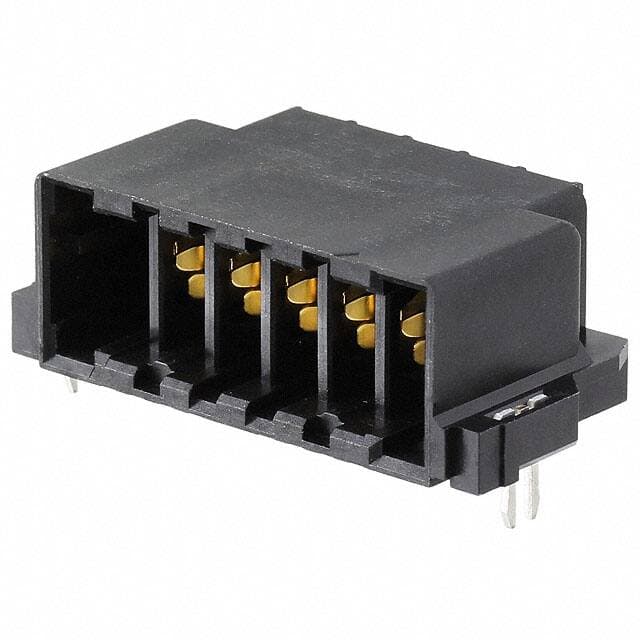

HIROSE FX30B-5S-3.81DSA
HIROSE FX30B-5S-3.81DSA

HIROSE FX30B-5S-3.81DSA

Manufacturer No:

FX30B-5S-3.81DSA

Manufacturer:

HIROSE

Package:

Description:

1 Rows Receptacle Solder Copper Alloy Through Hole Tray Gold Polyamide (PA), Nylon 5 Positions Female Blade Socket

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FX30B-5S-3.81DSA information

HIROSE FX30B-5S-3.81DSA technical specifications, attributes, parameters and parts with similar specifications to HIROSE FX30B-5S-3.81DSA.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Rectangular
  • Insulation Material
  • Polyamide (PA), Nylon
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tray
  • Series
  • FunctionMax? FX30B
  • JESD-609 Code
  • e3
  • Feature
  • Board Guide, Board Lock
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle
  • Number of Positions
  • 5
  • Applications
  • General Purpose
  • Number of Rows
  • 1
  • Voltage - Rated
  • 250V
  • Fastening Type
  • Latch Holder
  • Subcategory
  • Headers and Edge Type Connectors
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Female Blade Socket
  • Current Rating (Amps)
  • 13A
  • Orientation
  • Straight
  • Insulation Height
  • 0.630 16.00mm
  • Style
  • Board to Board
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 10A
  • Pitch - Mating
  • 0.150 3.81mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL,TUV
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.130 3.30mm
  • Contact Finish - Post
  • Tin
  • Contact Resistance
  • 2mOhm
  • Contact Finish Thickness - Mating
  • 3.90?in 0.099?m
  • Contact Finish Thickness - Post
  • 39.4?in 1.00?m
  • Stack Height (Mating)
  • 20mm 25mm 30mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for HIROSE FX30B-5S-3.81DSA.

Datasheets:

FX30B-5S-3.81DSA Overview


Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the FunctionMax? FX30B Series, it can be found in this category.A possible application of the device would be General Purpose.With its Board Guide, Board Lock feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -55°C~105°C Operating Temperature.

FX30B-5S-3.81DSA Features


FunctionMax? FX30B series


FX30B-5S-3.81DSA Applications


There are a lot of Hirose Electric Co Ltd
FX30B-5S-3.81DSA Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
