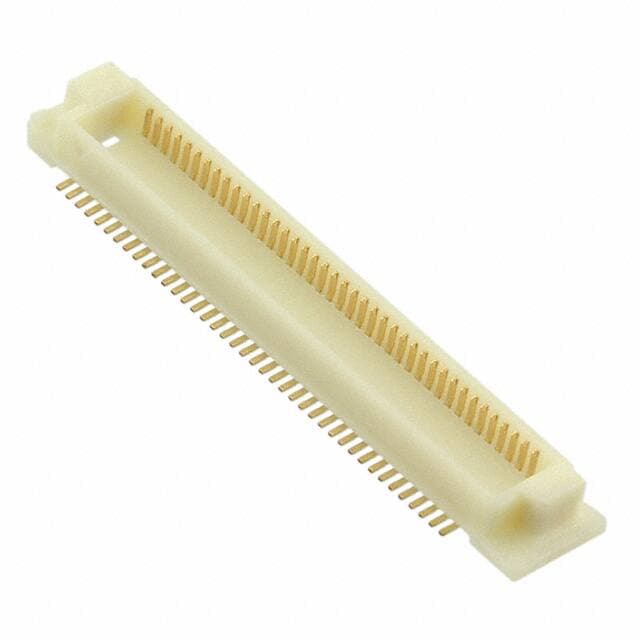

HIROSE FX8-80P-SV

Manufacturer No:

FX8-80P-SV

Manufacturer:

HIROSE

Package:

Description:

Header, Outer Shroud Contacts Tray 2 Rows 0.024 0.60mm Surface Mount 80 Positions FunctionMax? FX8 Gold Bronze

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FX8-80P-SV information

HIROSE FX8-80P-SV technical specifications, attributes, parameters and parts with similar specifications to HIROSE FX8-80P-SV.

Type
Parameter

Contact Material
Bronze

Mount
Surface Mount

Mounting Type
Surface Mount

Housing Material
Plastic

Packaging
Tray

Series
FunctionMax? FX8

Published
2004

JESD-609 Code
e0

Feature
Board Guide

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Header, Outer Shroud Contacts

Number of Positions
80

Number of Rows
2

Gender
Male

Additional Feature
LOW PROFILE, POLARIZED

Subcategory
Headers and Edge Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
0.024 0.60mm

Reach Compliance Code
unknown

Number of Conductors
ONE

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Number Of PCB Rows
2

Lead Pitch
600?m

PCB Contact Pattern
RECTANGULAR

Operating Temperature (Max)
85°C

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Operating Temperature (Min)
-55°C

UL Flammability Code
94V-0

Housing Color
Brown

Rated Current (Signal)
0.4A

Contact Resistance
45mOhm

Insulation Resistance
1000000000Ohm

Body/Shell Style
RECEPTACLE

Polarization Key
POLARIZED RIB(S)

Dielectric Withstanding Voltage
300VAC V

Durability
50 Cycles

Contact Pattern
RECTANGULAR

Height Above Board
0.112 2.85mm

Stack Height (Mating)
3mm

Download datasheets and manufacturer documentation for HIROSE FX8-80P-SV.

Datasheets:

hiroseelectriccoltd-fx8140psv-datasheets-4835.pdf

FX8-80P-SV Overview

A Header, Outer Shroud Contacts package is included with it.Packaging is performed using a Tray case.Its mounting type is Surface Mount.It is part of the FunctionMax? FX8 Series of products.In operation, Board Guide may be maintained.If you wish to mount this part, you will need to use a Surface Mount socket.Additionally, there are other features, such as LOW PROFILE, POLARIZED.

FX8-80P-SV Features

FunctionMax? FX8 series
Package / Case: Tray
Mounting Type:Surface Mount
Additional Feature: LOW PROFILE, POLARIZED

FX8-80P-SV Applications

There are a lot of Hirose Electric Co Ltd
FX8-80P-SV Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
