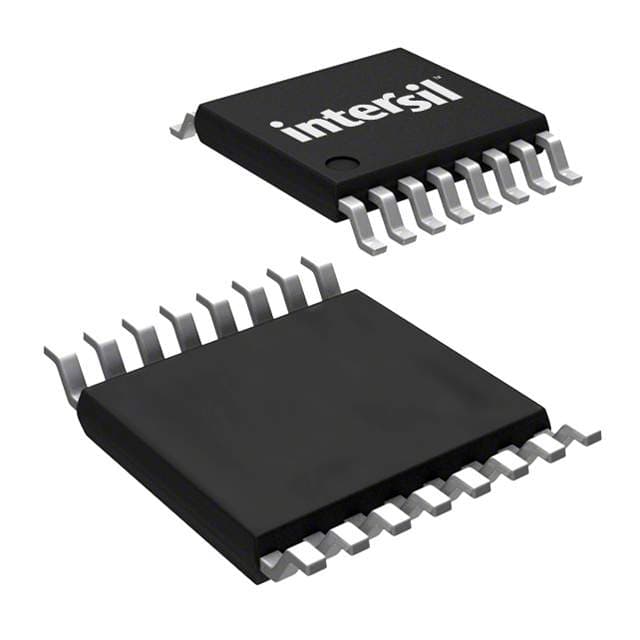

Renesas HI9P0201HS-5

Manufacturer No:

HI9P0201HS-5

Manufacturer:

Renesas

Package:

SOIC

Description:

Analog Switches BREAK-BEFORE-MAKE 16 Pins 15V SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HI9P0201HS-5 information

Renesas HI9P0201HS-5 technical specifications, attributes, parameters and parts with similar specifications to Renesas HI9P0201HS-5.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
16

Packaging
Bulk

Published
2000

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Resistance
50Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
75°C

Min Operating Temperature
0°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
4

Supply Voltage
15V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
SEPARATE OUTPUT

Pin Count
16

Power Supplies
+-15V

Temperature Grade
COMMERCIAL EXTENDED

Number of Channels
1

Operating Supply Current
4.5mA

Number of Bits
4

Throw Configuration
SPST

Supply Type
Dual

Neg Supply Voltage-Nom (Vsup)
-15V

Off-state Isolation-Nom
72 dB

On-state Resistance Match-Nom
0.9Ohm

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
50ns

Switch-off Time-Max
50ns

Normal Position
NC

Length
10.3mm

Height Seated (Max)
2.65mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HI9P0201HS-5.

Datasheets:

intersil-hi9p0201hs5-datasheets-3982.pdf

HI9P0201HS-5 Overview

Shipping overseas is convenient due to the electrical component's packing in SOIC. This packaging method provides high reliability because it uses advanced packaging techniques. 16 terminations have been made so far. Due to its 1 channels, the electrical component produces high-quality output. When a voltage supply of 15V is used, the electronic component should be turned on and run. It is injected into the electrical part body with 16 pins. As far as internal resistance is concerned, it has 50Ohm. To find out what the functions of 16 pins are, please refer to their datasheets. In this analog multiplexer, the value is Multiplexer or Switches. An effective Dual supply digital multiplexer. This digital switch can be operated with a current of 4.5mA. In this switch multiplexer, there are SEPARATE OUTPUT outputs available. In an environment with a temperature higher than 75°C, the digital switches should not operate. 4-bits are supported.

HI9P0201HS-5 Features

1 Channels
4.5mA Supply Current
4-Bit

HI9P0201HS-5 Applications

There are a lot of Intersil (Renesas Electronics America)
HI9P0201HS-5 Analog Switches & Multiplexers ICs applications.

Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
