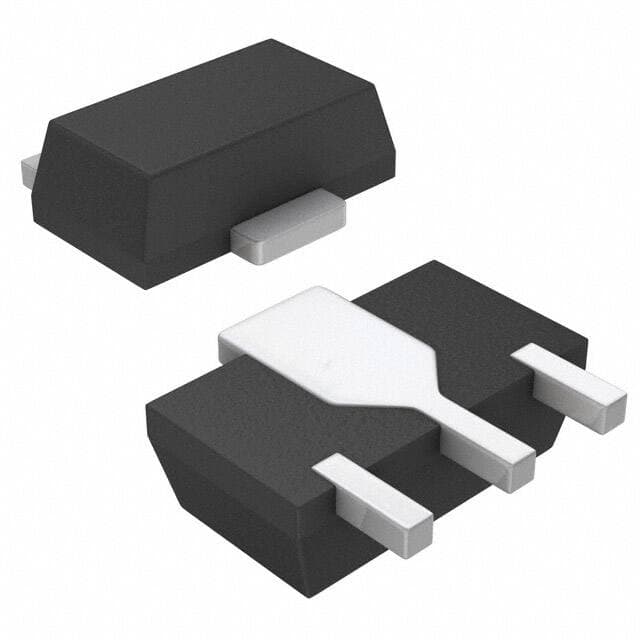

ADI HMC636ST89E
ADI HMC636ST89E

ADI HMC636ST89E

Manufacturer No:

HMC636ST89E

Manufacturer:

ADI

Package:

TO-243AA

Description:

10dB General Purpose WIDE BAND LOW POWER Strip 200MHz~4GHz 5V P1dB:23dBm 2dB 175mA Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HMC636ST89E information

ADI HMC636ST89E technical specifications, attributes, parameters and parts with similar specifications to ADI HMC636ST89E.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 3 weeks ago)
  • Factory Lead Time
  • 19 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-243AA
  • Number of Pins
  • 3
  • Packaging
  • Strip
  • JESD-609 Code
  • e3
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Additional Feature
  • LOW NOISE
  • Subcategory
  • RF/Microwave Amplifiers
  • Max Power Dissipation
  • 860mW
  • Technology
  • GAAS
  • Voltage - Supply
  • 5V
  • Number of Functions
  • 1
  • Construction
  • COMPONENT
  • Frequency
  • 200MHz~4GHz
  • Pin Count
  • 3
  • Power Supplies
  • 5V
  • Number of Channels
  • 1
  • Operating Supply Current
  • 175mA
  • Gain
  • 10dB
  • RF/Microwave Device Type
  • WIDE BAND LOW POWER
  • RF Type
  • General Purpose
  • Characteristic Impedance
  • 50Ohm
  • Noise Figure
  • 2dB
  • P1dB
  • 23dBm
  • Height
  • 1.6mm
  • Length
  • 4.6mm
  • Width
  • 2.59mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for ADI HMC636ST89E.

Datasheets:

ConflictMineralStatement:

HMC636ST89E Overview


A cost-effective RF amplifier with WIDE BAND LOW POWER RF/Microwave device type.Input RF type General Purpose of the RF amplifier.High reliability is achieved using advanced RF Amp' packaging Strip.Shipping overseas is convenient thanks to the RF power Amplifier's packaging in TO-243AA.The mount Amplifiers RF should be done in the direction of Surface Mount.It is possible to supply 5V volts to the Amplifiers RF.Added features of this RF Amp include: LOW NOISEFor it to perform as expected, the supply current must be in the range of 175mA.3 pins are on the high power RF Amplifier.Overall, the RF Amplifier contains 1 function(s).3 terminations with various functions.Particularly, RF Amplifier is a type of RF/Microwave Amplifiers.At a temperature around 85°C degrees Celsius, RF power Amplifier shouldbe running.

HMC636ST89E Features


WIDE BAND LOW POWER RF/Microwave Amplifier
RF Type General Purpose
5V voltage
3 pins


HMC636ST89E Applications


There are a lot of Analog Devices Inc.
HMC636ST89E RF Amplifiers applications.


  • Avionics
  • GPS
  • GLONASS
  • BeiDou
  • Galileo
  • Wireless communications
  • ISM applications
  • Wireless infrastructure
  • Automated test equipment
  • RF/IF gain control
