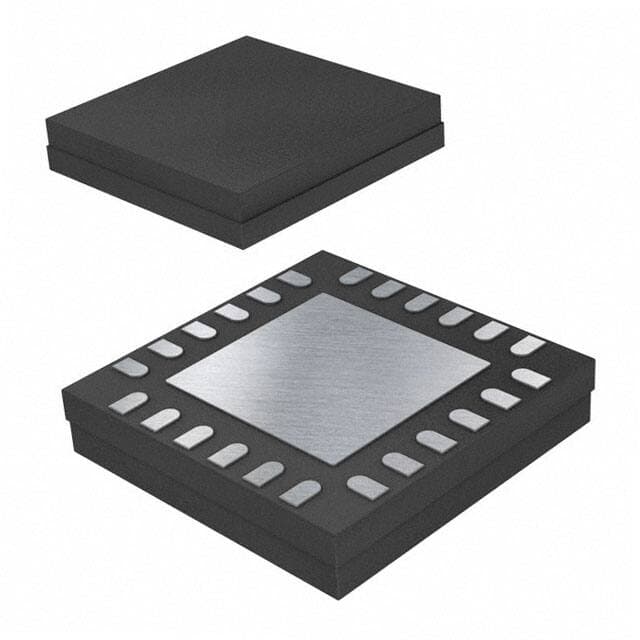

ADI HMC732LC4B

Manufacturer No:

HMC732LC4B

Manufacturer:

ADI

Package:

24-TFCQFN Exposed Pad

Description:

Surface Mount 24-TFCQFN Exposed Pad Bulk VCO, Buffer Amp 6GHz~12GHz Radar 24 Pins 44 Terminations HMC732 4mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HMC732LC4B information

ADI HMC732LC4B technical specifications, attributes, parameters and parts with similar specifications to ADI HMC732LC4B.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
8 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-TFCQFN Exposed Pad

Number of Pins
24

Packaging
Bulk

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

Termination
SMD/SMT

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Supply Voltage
5V

Terminal Pitch
0.5mm

Frequency
6GHz~12GHz

Time@Peak Reflow Temperature-Max (s)
30

JESD-30 Code
S-CQCC-N44

Function
VCO, Buffer Amp

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
5.5V

Min Supply Voltage
4.75V

Logic Function
Buffer

Telecom IC Type
TELECOM CIRCUIT

RF Type
Radar

Height
1.2mm

Length
4mm

Width
4mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI HMC732LC4B.

Datasheets:

analogdevicesinc-hmc732lc4b-datasheets-4561.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

HMC732LC4B Overview

RF modulator operates on the basis of the frequency of 6GHz~12GHz.This RF IC is excellent due to its enhanced 24-TFCQFN Exposed Pad package.The package of this RF modulator is Bulk.On any Surface Mount-type PCB or development board, you can install this RF modulator.RF module has 44 terminations built in for driving or receiving signals from data.24-pin RF module with improved power dissipation control.It must be below 85°C when the RF switch IC's system is operating.This RF switch IC must be able to operate at a minimum of -40°C degrees Celsius during normal operation.

HMC732LC4B Features

Frequency of 6GHz~12GHz
24-TFCQFN Exposed Pad package
Bulk
44 terminations
24 pins

HMC732LC4B Applications

There are a lot of Analog Devices Inc.
HMC732LC4B RF Misc ICs and Modules applications.

Variable matched attenuator
Phase shifter
Cellular base stations
Radio links
Fixed wireless access
Broadband/CATV
RF/IF analog multiplexer
Balanced modulation
Demodulation
Synchronous detection
