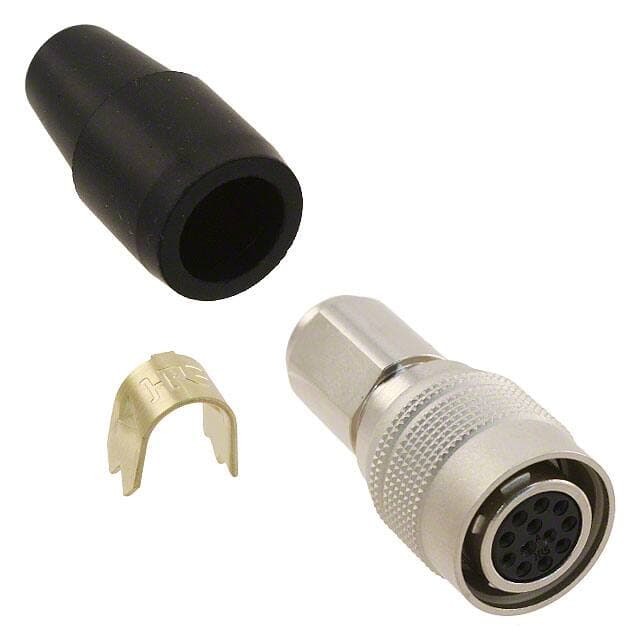

HIROSE HR10A-10P-12S(73)
HIROSE HR10A-10P-12S(73)

HIROSE HR10A-10P-12S(73)

Manufacturer No:

HR10A-10P-12S(73)

Manufacturer:

HIROSE

Package:

SIL

Description:

Plug, Female Sockets Zinc Alloy Free Hanging (In-Line) 12 Positions Solder Cup Silver Nickel Bulk Keyed Push-Pull

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HR10A-10P-12S(73) information

HIROSE HR10A-10P-12S(73) technical specifications, attributes, parameters and parts with similar specifications to HIROSE HR10A-10P-12S(73).

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Cable, Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Package / Case
  • SIL
  • Shell Material
  • Zinc Alloy
  • Material
  • Metal
  • Housing Material
  • Plastic
  • Insert Material
  • Polyamide (PA), Nylon
  • Body Material
  • Brass
  • Backshell Material, Plating
  • Brass, Nickel
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Bulk
  • Series
  • HR10A
  • Published
  • 1998
  • JESD-609 Code
  • e4
  • Feature
  • Backshell, Clamp, Strain Relief
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder Cup
  • ECCN Code
  • EAR99
  • Connector Type
  • Plug, Female Sockets
  • Number of Positions
  • 12
  • Additional Feature
  • POLARIZED
  • HTS Code
  • 8536.69.40.20
  • Fastening Type
  • Push-Pull
  • Subcategory
  • DIN Connectors
  • Contact Finish - Mating
  • Silver
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Total Number of Contacts
  • 12
  • Orientation
  • Keyed
  • Shielding
  • Unshielded
  • Current Rating
  • 2A
  • Shell Finish
  • Nickel
  • Shell Size - Insert
  • 10
  • Voltage - Rated AC
  • 100V
  • Reliability
  • COMMERCIAL
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Contact Gender
  • Female
  • Empty Shell
  • NO
  • Rated Current (Signal)
  • 2A

Download datasheets and manufacturer documentation for HIROSE HR10A-10P-12S(73).

Datasheets:

HR10A-10P-12S(73) Overview


The product comes in a package of Plug, Female Sockets.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the HR10A Series.Among other features are POLARIZED, to name only a few.There is a device enclosed in the packaging with the SIL.It is more powerful in many ways due to its Backshell, Clamp, Strain Relief feature.It is mounted by Cable, Free Hanging.It operates at an operating temperature of -25°C~85°C.

HR10A-10P-12S(73) Features


HR10A series


HR10A-10P-12S(73) Applications


There are a lot of Hirose Electric Co Ltd
HR10A-10P-12S(73) Circular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
