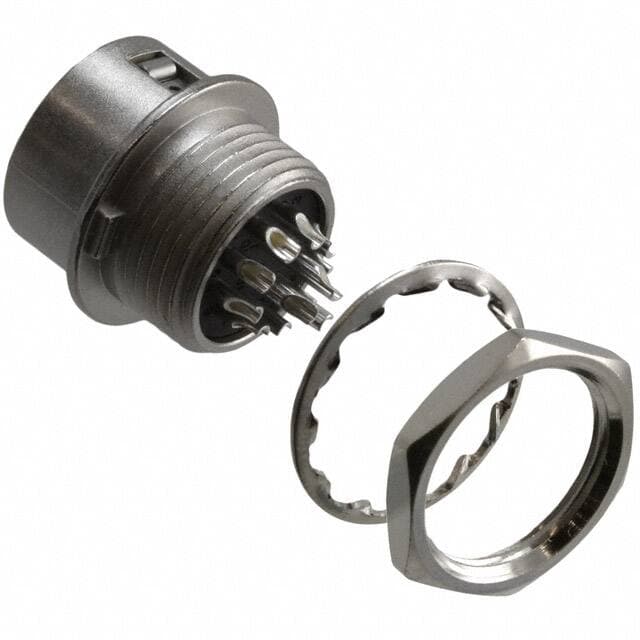

HIROSE HR10A-10R-12P(73)
HIROSE HR10A-10R-12P(73)

HIROSE HR10A-10R-12P(73)

Manufacturer No:

HR10A-10R-12P(73)

Manufacturer:

HIROSE

Package:

SIL

Description:

Receptacle, Male Pins Zinc Alloy Panel Mount 12 Positions Solder Cup Silver Nickel Bulk Keyed Push-Pull

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HR10A-10R-12P(73) information

HIROSE HR10A-10R-12P(73) technical specifications, attributes, parameters and parts with similar specifications to HIROSE HR10A-10R-12P(73).

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Brass
  • Contact Plating
  • Silver
  • Mount
  • Bulkhead, Panel, Rear Side Nut
  • Mounting Type
  • Panel Mount
  • Package / Case
  • SIL
  • Mounting Feature
  • Bulkhead - Rear Side Nut
  • Number of Pins
  • 12
  • Insulation Material
  • Plastic
  • Shell Material
  • Zinc Alloy
  • Housing Material
  • Plastic
  • Insert Material
  • Polyamide (PA), Nylon
  • Body Material
  • Brass
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Bulk
  • Series
  • HR10A
  • Published
  • 1998
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder Cup
  • Connector Type
  • Receptacle, Male Pins
  • Number of Positions
  • 12
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Gender
  • Receptacle
  • Voltage - Rated
  • 100VAC 140VDC
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Silver
  • Current Rating (Amps)
  • 2A
  • Orientation
  • Keyed
  • Shielding
  • Unshielded
  • Depth
  • 14mm
  • Current Rating
  • 2A
  • Shell Finish
  • Nickel
  • Shell Size - Insert
  • 10
  • Voltage - Rated AC
  • 100V
  • Number of Contacts
  • 12
  • Contact Gender
  • Male
  • Max Current Rating
  • 2A
  • Plating
  • Nickel
  • Length
  • 16mm
  • Contact Finish Thickness - Mating
  • 78.7?in 2.00?m
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for HIROSE HR10A-10R-12P(73).

Datasheets:

HR10A-10R-12P(73) Overview


Packaging is in the form of Receptacle, Male Pins.This device has a Panel Mount mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the HR10A Series.There are 12 pins on the device.If the temperature is below 85°C, it's best to use it.-25°C is the minimum temperature for this device.This package contains an enclosed device in the SIL.There is a mounting hole at Bulkhead, Panel, Rear Side Nut.Devices operate at -25°C~85°C operating temperatures.

HR10A-10R-12P(73) Features


HR10A series


HR10A-10R-12P(73) Applications


There are a lot of Hirose Electric Co Ltd
HR10A-10R-12P(73) Circular Connectors applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
