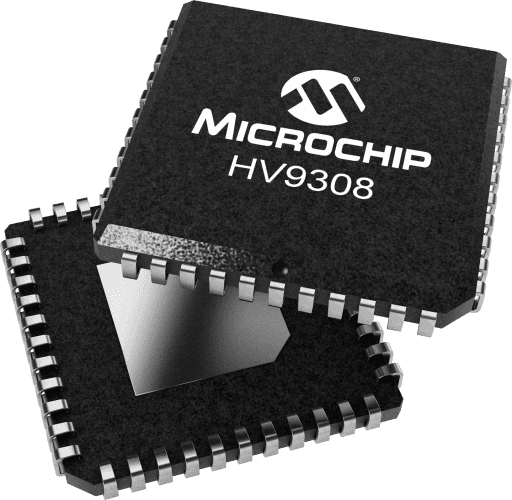

Microchip HV9308PJ-G

Manufacturer No:

HV9308PJ-G

Manufacturer:

Microchip

Package:

44-LCC (J-Lead)

Description:

32-CHANNEL, W/HI-VOLT CMOS OUTPUTS, 80V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV9308PJ-G information

Microchip HV9308PJ-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV9308PJ-G.

Type
Parameter

Type
Source-Sink

Output Channels
32

Vout Operating (V) - Transient
90

Vout Operating (V) - Sustained
80

Iout (mA) per Channel
-20, +5

Output Structure
Half-Bridge

Input Structure
Serial

Minimum Data Clock (MHz)
8

General Description
Serial to parallel converter latches and output enable, CW directional shift

Package
44/PQFP 44/PLCC

Download datasheets and manufacturer documentation for Microchip HV9308PJ-G.

Data Sheets:

1eed9cd4bcacc2415bc44a2f067f962c.pdf

The HV9308 is a low voltage serial to high voltage parallel converter with push-pull outputs. This device has been designed for use as a driver for AC-electroluminescent displays. It can also be used in any application requiring multiple output, high voltage current sourcing and sinking capabilities such as driving plasma panels, vacuum fluorescent, or large matrix LCD displays. This device consists of a 32-bit shift register, 32 latches, and control logic to enable outputs. HVOUT1 is connected to the first stage of the shift register through the Output Enable logic. Data is shifted through the shift register on the low to high transition of the clock. The HV9308 shifts in the clockwise direction when viewed from the top of the package. A data output buffer is provided for cascading devices. This output reflects the current status of the last bit of the shift register (32). Operation of the shift register is not affected by the LE (latch enable) or the OE (output enable) inputs. Transfer of data from the shift register to the latch occurs when the LE input is high. The data in the latch is retained when LE is low.

Processed with HVCMOS® technology
Low power level shifting
Shift register speed 8.0MHz
Latched data outputs
5.0V CMOS compatible inputs
Diode to VPP allows efficient power recovery
