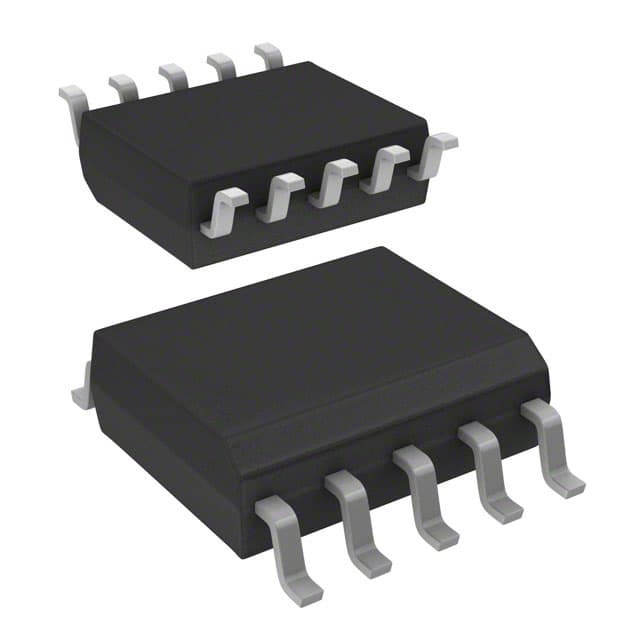

ST HVLED001BTR
ST HVLED001BTR

ST HVLED001BTR

Manufacturer No:

HVLED001BTR

Manufacturer:

ST

Package:

10-SOP (0.154, 3.90mm Width)

Description:

PMIC HVLED001 10-SOP (0.154, 3.90mm Width)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HVLED001BTR information

ST HVLED001BTR technical specifications, attributes, parameters and parts with similar specifications to ST HVLED001BTR.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 10-SOP (0.154, 3.90mm Width)
  • Operating Temperature
  • -40°C~125°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Type
  • AC DC Offline Switcher
  • Applications
  • General Purpose
  • Reach Compliance Code
  • compliant
  • Base Part Number
  • HVLED001
  • Number of Outputs
  • 1
  • Topology
  • Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
  • Internal Switch(s)
  • No
  • Dimming
  • PWM
  • Voltage - Supply (Max)
  • 18V
  • Voltage - Supply (Min)
  • 7.3V
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ST HVLED001BTR.

Datasheets:

HVLED001BTR Overview


Space is saved using its 10-SOP (0.154, 3.90mm Width) package. LED drivers have a total of 1 outputs that are used in the design of the drivers.The led light driver is mounted using Surface Mount.When it emerges as a AC DC Offline Switcher, it performs extremely well and is highly reliable.It is capable of operating at a temperature of -40°C~125°C TJ. General Purpose provides many benefits.The voltage supply can fail if it is below 7.3V.It is under the base part number HVLED001 that the LED driver can be found.There is a maximum value of 18V that can be used with it.

HVLED001BTR Features


Available in the 10-SOP (0.154, 3.90mm Width) package
Operating temperature of -40°C~125°C TJ


HVLED001BTR Applications


There are a lot of STMicroelectronics
HVLED001BTR LED Driver ICs applications.


  • Gallery lighting
  • Museum lighting
  • High-end retail lighting
  • Medical surgery lighting
  • Replacement lamps
  • Panel lighting
  • Down lights
  • Linear fluorescent
  • A- lamps
  • General LED Lighting: Down-lights, Base-lights, Ceiling Lights, Exterior Lights
