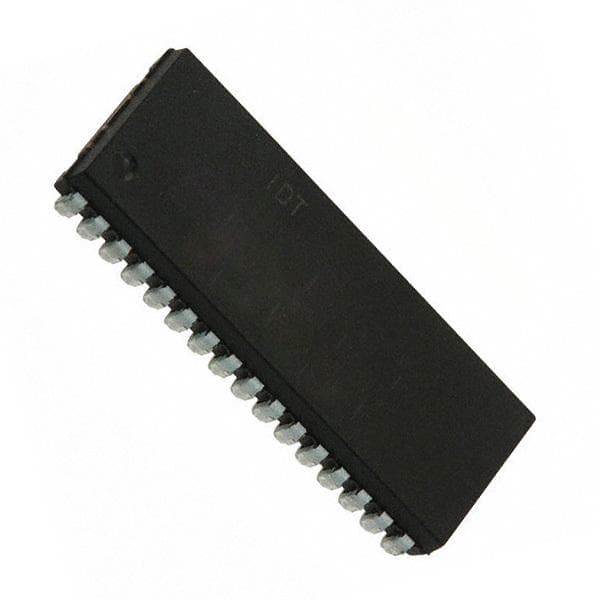

Renesas IDT71124S15Y

Manufacturer No:

IDT71124S15Y

Manufacturer:

Renesas

Package:

Description:

5V V 32 Pin Memory IC 20.955mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71124S15Y information

Renesas IDT71124S15Y technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71124S15Y.

Type
Parameter

Surface Mount
YES

Number of Pins
32

Published
2009

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
3A991.B.2.B

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
32

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Number of Ports
1

Memory Type
RAM, SRAM - Asynchronous

Supply Current-Max
0.155mA

Organization
128KX8

Output Characteristics
3-STATE

Memory Width
8

Standby Current-Max
0.01A

Memory Density
1048576 bit

Access Time (Max)
15 ns

I/O Type
COMMON

Standby Voltage-Min
4.5V

Output Enable
YES

Length
20.955mm

Height Seated (Max)
3.683mm

Width
10.16mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71124S15Y.

Datasheets:

integrateddevicetechnology-idt71124s15y-datasheets-1035.pdf

IDT71124S15Y Overview

There is a memory type RAM, SRAM - Asynchronous for this type of device. The chip contains 32 terminations. As many as 1 functions are supported for comprehensive working. An 5V supply is required for this ic memory chip to operate properly. A package of 32 pins is used to protect this memory device. The memory device has 32 pins, which means that it has 32 memory locations, which indicates it is an 32-bit device. Each memory address is accessed by one of 1 ports on this chip. The power supply needed for this memory chip is only 5V . An COMMON-bit memory mapped I/O port address is used to address this device. There must be at least an 0°C operating temperature for this device. The part should not be operated at temperatures above 70°C degrees Celsius as otherwise, the part may be damaged due to the excessive amount of heat. This device can be operated from a maximum supply current of 0.155mA under ideal conditions. The component is usually referred to as a type of SRAMs.

IDT71124S15Y Features

32 Pins
I/O Type: COMMON

IDT71124S15Y Applications

There are a lot of Integrated Device Technology (IDT)
IDT71124S15Y Memory applications.

personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
