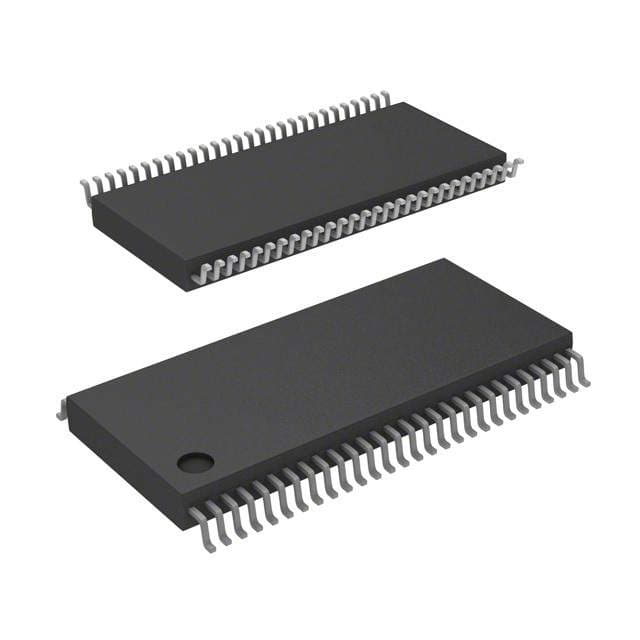

Renesas IDT74ALVCH16721PAG8

Manufacturer No:

IDT74ALVCH16721PAG8

Manufacturer:

Renesas

Package:

TFSOP

Description:

20 Bit Flip Flop DUAL 56 Pins TFSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT74ALVCH16721PAG8 information

Renesas IDT74ALVCH16721PAG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT74ALVCH16721PAG8.

Type
Parameter

Mount
Surface Mount

Package / Case
TFSOP

Number of Pins
56

Packaging
Tape and Reel

Published
2009

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
56

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
WITH CLOCK ENABLE

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
150MHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
56

Qualification Status
Not Qualified

Number of Elements
1

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.6V

Min Supply Voltage
2.3V

Number of Ports
2

Number of Bits
20

Propagation Delay
6.1 ns

Turn On Delay Time
1 ns

Family
ALVC/VCX/A

Logic Function
AND

Output Characteristics
3-STATE

Logic IC Type
BUS DRIVER

High Level Output Current
24mA

Low Level Output Current
24mA

Clock Edge Trigger Type
Positive Edge

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT74ALVCH16721PAG8.

Datasheets:

integrateddevicetechnology-idt74alvch16721pag8-datasheets-2901.pdf

IDT74ALVCH16721PAG8 Overview

The flip flop is packaged in TFSOP. Package Tape and Reelembeds it. In total, there are 1 elements. Currently, there are 56 terminations. The D flip flop is powered by a voltage of 3.3V . Devices in the ALVC/VCX/Afamily are electronic devices. A part of the electronic system is mounted in the way of Surface Mount. This board is designed with 56pins on it. This device has Positive Edgeas its clock edge trigger type. An electronic part designed with 20bits is used in this application. A D flip flop with 2embedded ports is available. Additionally, you may refer to the D latch's additional WITH CLOCK ENABLE. 24mA is set as the high level output current. In the low level output current setting, 24mAis used. It is recommended that the operating temperature be below 85°C. Ideally, the operating temperature should be higher than -40°C. A minimum supply voltage of 2.3V is required for these RS flip flops to operate. In this case, it supports a maximum supply voltage of 3.6V. It is possible to achieve 150MHz frequencies. It uses a logic IC with a BUS DRIVER value. A total of 1 functions are available on the T flip flop. There are 56 pins on the D latch.
