IPC100N04S52R8ATMA1 information

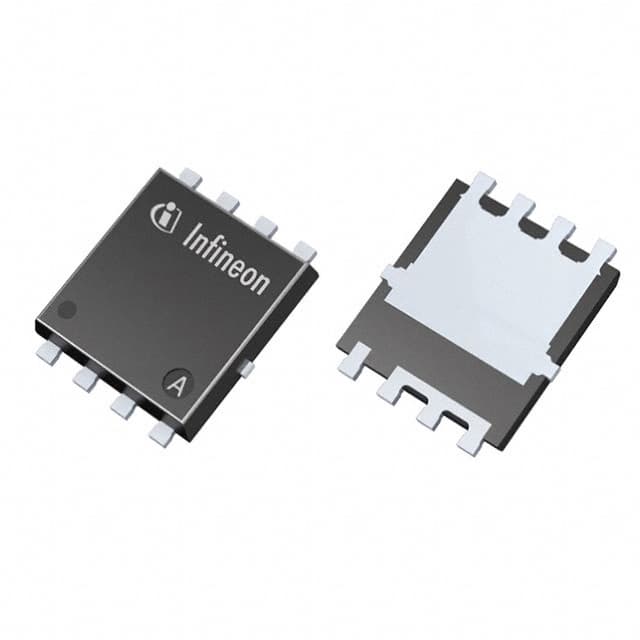

INFINEON IPC100N04S52R8ATMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON IPC100N04S52R8ATMA1.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 8-PowerTDFN
  • Surface Mount
  • YES
  • Transistor Element Material
  • SILICON
  • Current - Continuous Drain (Id) @ 25℃
  • 100A Tc
  • Drive Voltage (Max Rds On, Min Rds On)
  • 7V 10V
  • Number of Elements
  • 1
  • Power Dissipation (Max)
  • 75W Tc
  • Operating Temperature
  • -55°C~175°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Series
  • OptiMOS™
  • Published
  • 2016
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Terminal Position
  • DUAL
  • Terminal Form
  • FLAT
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • JESD-30 Code
  • R-PDSO-F3
  • Configuration
  • SINGLE WITH BUILT-IN DIODE
  • Operating Mode
  • ENHANCEMENT MODE
  • Case Connection
  • DRAIN
  • FET Type
  • N-Channel
  • Rds On (Max) @ Id, Vgs
  • 2.8m Ω @ 50A, 10V
  • Vgs(th) (Max) @ Id
  • 3.4V @ 30μA
  • Input Capacitance (Ciss) (Max) @ Vds
  • 2600pF @ 25V
  • Gate Charge (Qg) (Max) @ Vgs
  • 45nC @ 10V
  • Drain to Source Voltage (Vdss)
  • 40V
  • Vgs (Max)
  • ±20V
  • Drain Current-Max (Abs) (ID)
  • 100A
  • Drain-source On Resistance-Max
  • 0.0034Ohm
  • Pulsed Drain Current-Max (IDM)
  • 400A
  • DS Breakdown Voltage-Min
  • 40V
  • Avalanche Energy Rating (Eas)
  • 66 mJ
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON IPC100N04S52R8ATMA1.

Datasheets:

PCN Packaging:

ConflictMineralStatement:

IPC100N04S52R8ATMA1 Overview


The MOSFET's breakdown is called "avalanche break down", and the avalanche energy applied to transistor is rated as 66 mJ (Eas).Op amps with either input grounded have a fixed input capacitance parameter, CI, and this device has a 2600pF @ 25V maximal input capacitance.A device can conduct a maximum continuous current of [100A] according to its drain current.As far as peak drain current is concerned, its maximum pulsed current is 400A.The DS breakdown voltage should be maintained above 40V to maintain normal operation.To operate this transistor, you will need a 40V drain to source voltage (Vdss).

IPC100N04S52R8ATMA1 Features


the avalanche energy rating (Eas) is 66 mJ
based on its rated peak drain current 400A.
a 40V drain to source voltage (Vdss)


IPC100N04S52R8ATMA1 Applications


There are a lot of Infineon Technologies
IPC100N04S52R8ATMA1 applications of single MOSFETs transistors.


  • Synchronous Rectification for ATX 1 Server I Telecom PSU
  • Motor drives and Uninterruptible Power Supplies
  • Micro Solar Inverter
  • DC/DC converters
  • Power Tools
  • Motor Drives and Uninterruptible Power Supples
  • Synchronous Rectification
  • Battery Protection Circuit
  • Telecom 1 Sever Power Supplies
  • Industrial Power Supplies
