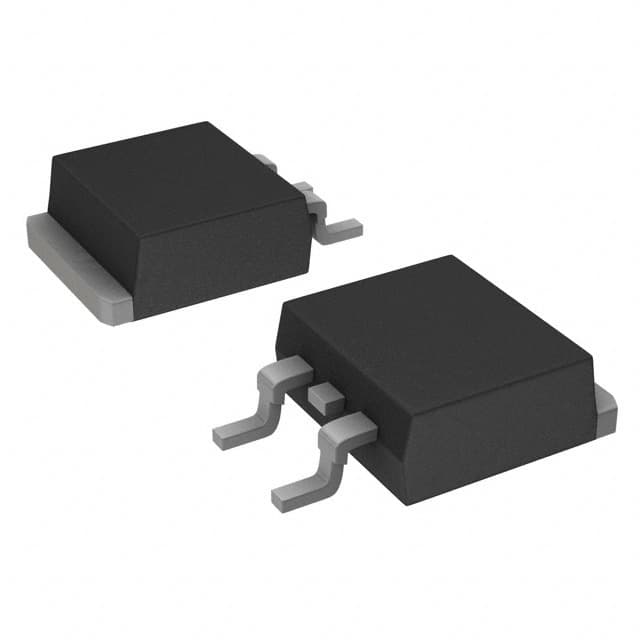

INFINEON IPS0151S

Manufacturer No:

IPS0151S

Manufacturer:

INFINEON

Package:

D2PAK

Description:

Bulk 1 Hot Swap Controllers D2PAK 1

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IPS0151S information

INFINEON IPS0151S technical specifications, attributes, parameters and parts with similar specifications to INFINEON IPS0151S.

Type
Parameter

Mount
Surface Mount

Package / Case
D2PAK

Number of Pins
3

Packaging
Bulk

Published
2002

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Resistance
20mOhm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
150°C

Min Operating Temperature
-40°C

Subcategory
Peripheral Drivers

Technology
MOS

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
14V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
4

Qualification Status
Not Qualified

Max Output Current
3.8A

Operating Supply Voltage
35V

Temperature Grade
AUTOMOTIVE

Number of Channels
1

Interface
On/Off

Output Configuration
Low Side

Output Current per Channel
3.8A

Driver Number of Bits
1

Fault Protection
Over Temperature

Turn On Time
0.6 ?s

Output Peak Current Limit-Nom
35A

Drain to Source Resistance
25mOhm

Turn Off Time
2 ?s

Built-in Protections
OVER CURRENT; THERMAL

Output Current Flow Direction
SINK

Height
4.83mm

Length
10.67mm

Width
9.65mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for INFINEON IPS0151S.

Datasheets:

internationalrectifier-ips0151s-datasheets-9705.pdf

IPS0151S Overview

It's included in the D2PAK package.Currently, there are 1 channels accessible.It's packaged in the form of a Bulk.Hot-swappable device has a total of 2 terminations.The terminal position of the device is SINGLE.Hot-swappable device has a total of 4 pins on Hot-swappable device.With a supply voltage of 14V, high efficiency is possible.For operation, 3 pins are used.This gadget is self-contained in Peripheral Drivers.Hot-swappable device is posHot-swappable deviceioned in the direction of Surface Mount.The maximum operating temperature of 150°C°C allows for stable operation.To maintain reliability, it functions at a minimum working temperature of -40°C degrees Celsius.To meet the operation criteria, the maximum output current drops to 3.8A.The device has {0} resistance.

IPS0151S Features

The terminal position of 4

IPS0151S Applications

There are a lot of International Rectifier
IPS0151S hot swap controllers applications.

Servers
Network switches
Networking
Telecommunications
Industrial
Datacom
Electric vehicle
Avionics systems
Safe board insertion and extraction
Industrial computers and servers
