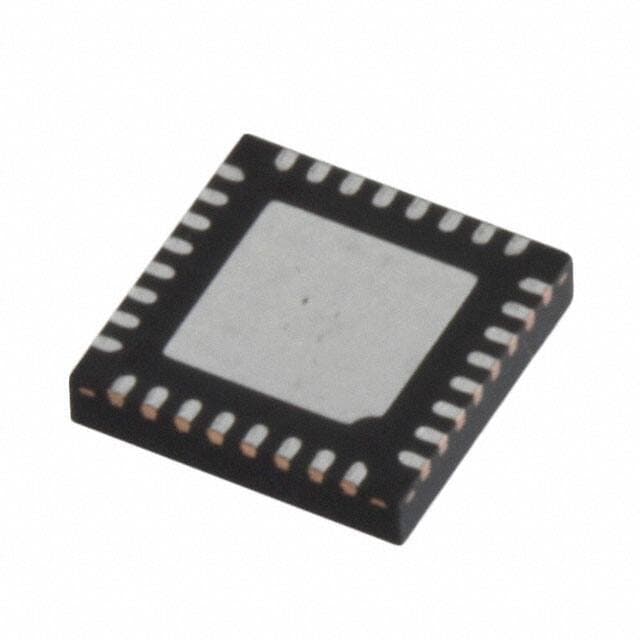

INFINEON IR3623MTRPBF

Manufacturer No:

IR3623MTRPBF

Manufacturer:

INFINEON

Package:

32-VFQFN Exposed Pad

Description:

32 Terminals 8.5V~14.5V 32-Pin IR3623MPBF DC to DC converter IC DUAL SWITCHING CONTROLLER 2 Outputs 200kHz~1.2MHz PWM Signal

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR3623MTRPBF information

INFINEON IR3623MTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR3623MTRPBF.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount, Through Hole

Mounting Type
Surface Mount

Package / Case
32-VFQFN Exposed Pad

Number of Pins
32

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

Published
2007

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
IR3623MPBF

Function
Step-Down

Number of Outputs
2

Output Voltage
5.4V

Output Type
PWM Signal

Operating Supply Voltage
14.5V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Output Configuration
Positive

Output Current
200mA

Voltage - Supply (Vcc/Vdd)
8.5V~14.5V

Max Supply Current
17mA

Control Features
Current Limit, Enable, Frequency Control, Power Good, Sequencing, Soft Start, Tracking

Input Voltage (Min)
8.5V

Topology
Buck

Control Mode
VOLTAGE-MODE

Frequency - Switching
200kHz~1.2MHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Max Frequency
1.2MHz

Max Duty Cycle
85 %

Clock Sync
Yes

Height
939.8?m

Length
4.9784mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for INFINEON IR3623MTRPBF.

IR3623MTRPBF Overview

Capsuled in the 32-VFQFN Exposed Pad package, the switching controller suits most application needs. The dc motor controller is adquate to generate for 2 outputs. The pmic is packaged in Tape & Reel (TR) solid enclosure. It is capable of dealing with PWM Signal dc switching's output (s). dc switching'sThe supply and operating voltage of the dc control are 8.5V~14.5V. Qualified to work in a -40°C~125°C TJ dc switcher. This switching controller can switch at 200kHz~1.2MHz. Surface Mount makes it suitable for general dc dc regulator. The dcdc regulator features Current Limit, Enable, Frequency Control, Power Good, Sequencing, Soft Start, Tracking for efficient switching control. The switch converters are connected to a DUAL SWITCHING CONTROLLER analog IC. Terminal (s) of the switching converters are designed at the QUAD position. 32 terminations with a variety of function. To name a few of the control techniques these dc dc converter ics adapt, it includes PULSE WIDTH MODULATION. 12V nominal DC switcher's voltage input. Other relevant dc to dc converter ics can be found by searching "IR3623MPBF". Switching converter has a total of 32 pins. Switching converter is a type of Switching Regulator or Controllers in particular. The minimum input voltage of the dc dc voltage regulator should be 8.5V. According to the test statistics, DC regulator outputs 5.4V voltage. The dc dc regulator's usual output current is 200mA, which should be noted down when you start a project. To ensure the reliability under power-up and power-down, the maximum duty cycle of the voltage regulator dc to dc is set as 85 %. DC switcher's Surface Mount, Through Hole makes it qualified for most application and prototype designs. DC switcher'sThe max frequency of the pmic can reach 1.2MHz. It is suggested that users apply 14.5V to the voltage regulator dc to dc in order to run it safely and reliably in a circuit. A current greater than 17mA may result in improper operation and possibly damage to the component.

IR3623MTRPBF Features

PWM Signal Outputs
Switching Frequency: 200kHz~1.2MHz
Current Limit, Enable, Frequency Control, Power Good, Sequencing, Soft Start, Tracking
PULSE WIDTH MODULATION
Max Duty Cycle: 85 %

IR3623MTRPBF Applications

There are a lot of Infineon Technologies
IR3623MTRPBF DC to DC converter applications.

CNC system
Servo drive system
Digital display device
Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
