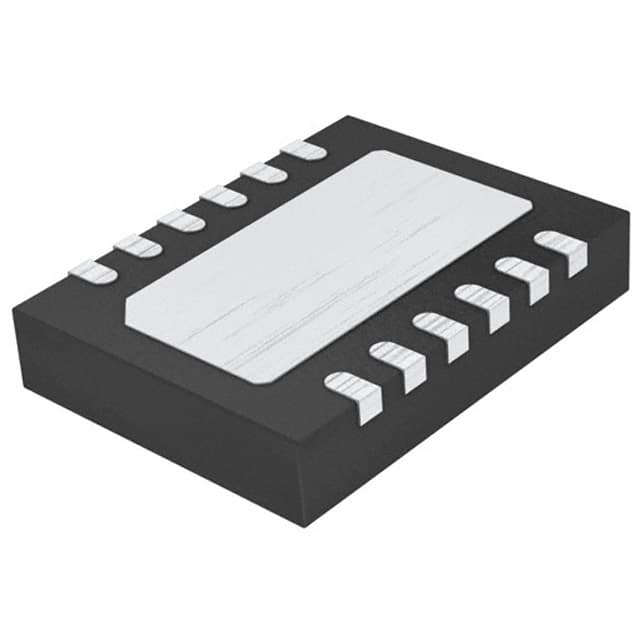

INFINEON IR3725MTRPBF

Manufacturer No:

IR3725MTRPBF

Manufacturer:

INFINEON

Package:

12-VFDFN Exposed Pad

Description:

3.3V 0.5mm PMIC TruePower? Series IR3725MPBF 12 Pin 512kHz 3.3V 12-VFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR3725MTRPBF information

INFINEON IR3725MTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR3725MTRPBF.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
12-VFDFN Exposed Pad

Number of Pins
12

Operating Temperature
0°C~125°C

Packaging
Tape & Reel (TR)

Series
TruePower?

Published
2008

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
Power Supply Monitor

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Voltage - Supply
3.135V~3.465V

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Frequency
512kHz

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
IR3725MPBF

Qualification Status
Not Qualified

Output Voltage
23.5V

Supply Voltage-Max (Vsup)
3.3V

Power Supplies
3.3V

Supply Voltage-Min (Vsup)
2.7V

Number of Channels
1

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Operating Supply Current
700?A

Max Supply Current
1mA

Adjustable Threshold
YES

Threshold Voltage
3.1V

Height
900?m

Length
4mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for INFINEON IR3725MTRPBF.

IR3725MTRPBF Overview

In Tape & Reel (TR), it is packaged. As a space-saving measure, it is included in the 12-VFDFN Exposed Pad package. The mounting is done according to Surface Mount. In order for the system to function properly, the temperature must be kept at 0°C~125°C. The device is an outstanding choice for Power Supply Monitor owing to its outstanding performance. As a result of the 3.135V~3.465V supply voltage, high efficiency is possible. In this device, the analog IC POWER SUPPLY SUPPORT CIRCUIT is used. The total number of terminations is 12. In the reflow process, the peak temperature is 260. Identical components can be discovered by using its base part number IR3725MPBF. As a result of the supply voltage of 3.3V, a high level of efficiency is possible. A total of 1 channels are available. A device of this type belongs to Power Management Circuits. If the supply voltage (Vsup) is above 2.7V, normal operation can be achieved. The design uses 12 pins. It is set to 3.3V for maximum supply voltage. Power for this DC DC switching regulator is provided by a supply current of 700?A. Using the Surface Mount method, it is mounted. Power is supplied by 3.3V. These electrical components are part of the TruePower? series. A constant output voltage is maintained at 23.5V.

IR3725MTRPBF Features

12-VFDFN Exposed Pad package
Mounting type of Surface Mount
Power Management Circuits subcategory

IR3725MTRPBF Applications

There are a lot of Infineon Technologies
IR3725MTRPBF Power Supply Control ICs applications.

Monogram lift
Projector electric hanger lift
Multimedia classroom
Multi-purposed meeting room
Command and control center
Smart home
User-available push-button control panel
Computer monitor
Touch screen
Remote control
