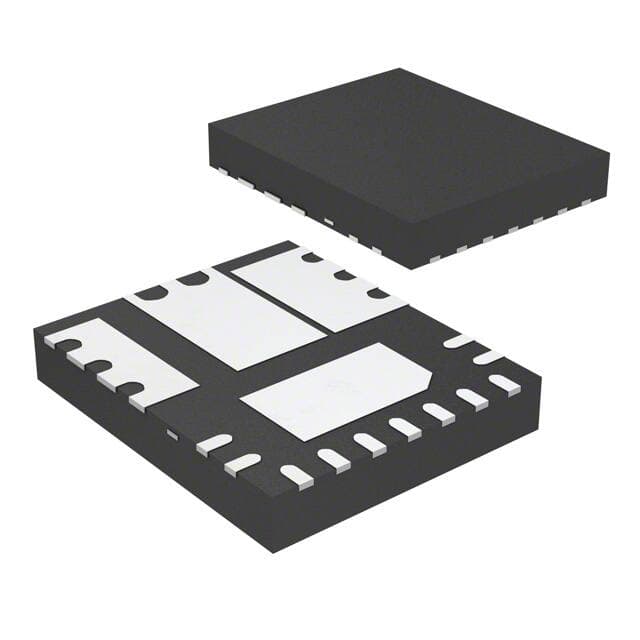

INFINEON IR4311MTRPBF

Manufacturer No:

IR4311MTRPBF

Manufacturer:

INFINEON

Package:

22-PowerVQFN

Description:

35W W Audio Amplifiers 9W W 22 pins 22-PowerVQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IR4311MTRPBF information

INFINEON IR4311MTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR4311MTRPBF.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
22-PowerVQFN

Number of Pins
22

Operating Temperature
-40°C~100°C TA

Packaging
Digi-Reel®

Published
2009

Feature
Depop, Differential Inputs

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
15

ECCN Code
EAR99

Type
Class D

Subcategory
Audio/Video Amplifiers

Max Power Dissipation
9W

Terminal Position
QUAD

Base Part Number
IR4311

Output Type
1-Channel (Mono)

Operating Supply Voltage
12V

Number of Channels
1

Max Supply Voltage
15V

Min Supply Voltage
10V

Power Dissipation
9W

Input Offset Voltage (Vos)
18mV

Gain Bandwidth Product
9MHz

Gain
50 dB

Max Dual Supply Voltage
7.5V

Max Output Power
35W

Min Dual Supply Voltage
5V

Max Output Power x Channels @ Load
35W x 1 @ 4 ?

Load Impedance
4Ohm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for INFINEON IR4311MTRPBF.

IR4311MTRPBF Overview

A device has been embedded in 22-PowerVQFN .Ideally, the chip should be packaged in a Digi-Reel® case.In 15 terminations, the transmission line is terminated with an impedance-matching device.Amp parts uses 1-Channel (Mono) as Amp partss output.In terms of electrical devices, it belongs to the type Class D .In a computer or other communications device, 22 pins are pronged contacts.This electronic part is mounted in the way of Surface Mount .Channels 1 are present in the device.The operation of Depop, Differential Inputs can be ensured.There should be no temperature increase above -40°C~100°C TA .The item belongs to Audio/Video Amplifiers .Amp parts is included in the IR4311 family.Amp parts is recommended to mount the chip in the way of Surface Mount .This electronic part has a maximum output power of 35W kWh per hour.This device operates at a maximum voltage of 15V volts.Amp parts operates at 10V volts as Amp partss minimal supply voltage.

IR4311MTRPBF Features

22-PowerVQFN package
IR4311 family
35W kWh per hour

IR4311MTRPBF Applications

There are a lot of Infineon Technologies
IR4311MTRPBF audio amplifiers applications.

Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video and image computer boards
Medical instruments
Television broadcasting equipment
Displayers for aircraft and air transportation control systems
Automotive sensors
